3. Hybrid 52

Hybrid 52

120 Watt

Hybrid 52

Technical Highlights

  • Power up to 120 watts RMS, frequency response from 45-25,000 Hz.
  • Tweeter with two adjustment levels, sensitivity of 90 dB.
  • 5-inch components with cast aluminum basket, DPC cone.
  • More technical details
€1,066.03
-24% €1,400.00 €1,066.03
2% discount with credit card

Your price match offer

ProductHybrid 52

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT
Estimated delivery: Sep 22–Sep 25.
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms

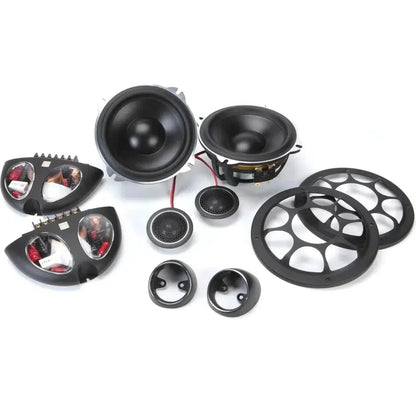

A set of Morel Hybrid 52 speakers, featuring two large units, tweeters, crossovers, and black grills, displayed on a white background.
€1,066.03
€1,400.00-24% €1,066.03

The passive Morel Hybrid 52 2-way 5-inch speaker system gets its name from the ferrite and neodymium magnets that drive the damped 5-1/4-inch polymer woofer. The woofer benefits greatly from its robust one-piece dust cap and cone structure, and Morel uses the new Hexatech aluminum voice coil technology for better heat dissipation and efficient performance. The component speakers of the Hybrid series from Morel are known for their reliability and distinctive sound. The MT300 soft dome tweeter, coated with an Acuflex™ compound for maximum damping, contributes warm highs that help define this speaker system. The system’s external MXR crossovers ensure the ideal blend of highs and lows for an incredible stereo image. In addition, the tweeter can be adjusted in two levels, allowing you to tailor the sound to your vehicle’s environment.

Features

  • 5-1/4 inch component speaker system
  • Includes two woofers, two tweeters, and two crossovers
  • One-piece damped polymer cone (DPC)
  • Aluminum cast basket
  • Acuflex-coated silk dome tweeter
  • External crossover with two level settings for the tweeter
  • Handles up to 120 watts RMS
  • Frequency response: 45-25,000 Hz
  • Sensitivity: 90 dB at 2.83 V
  • Tweeter mounting depth: 1.3cm
  • Woofer mounting depth: 6.2cm
  • Woofer cutout diameter: 12.2cm
  • Includes grilles

Scope of delivery

  • Morel Hybrid 52 user manual

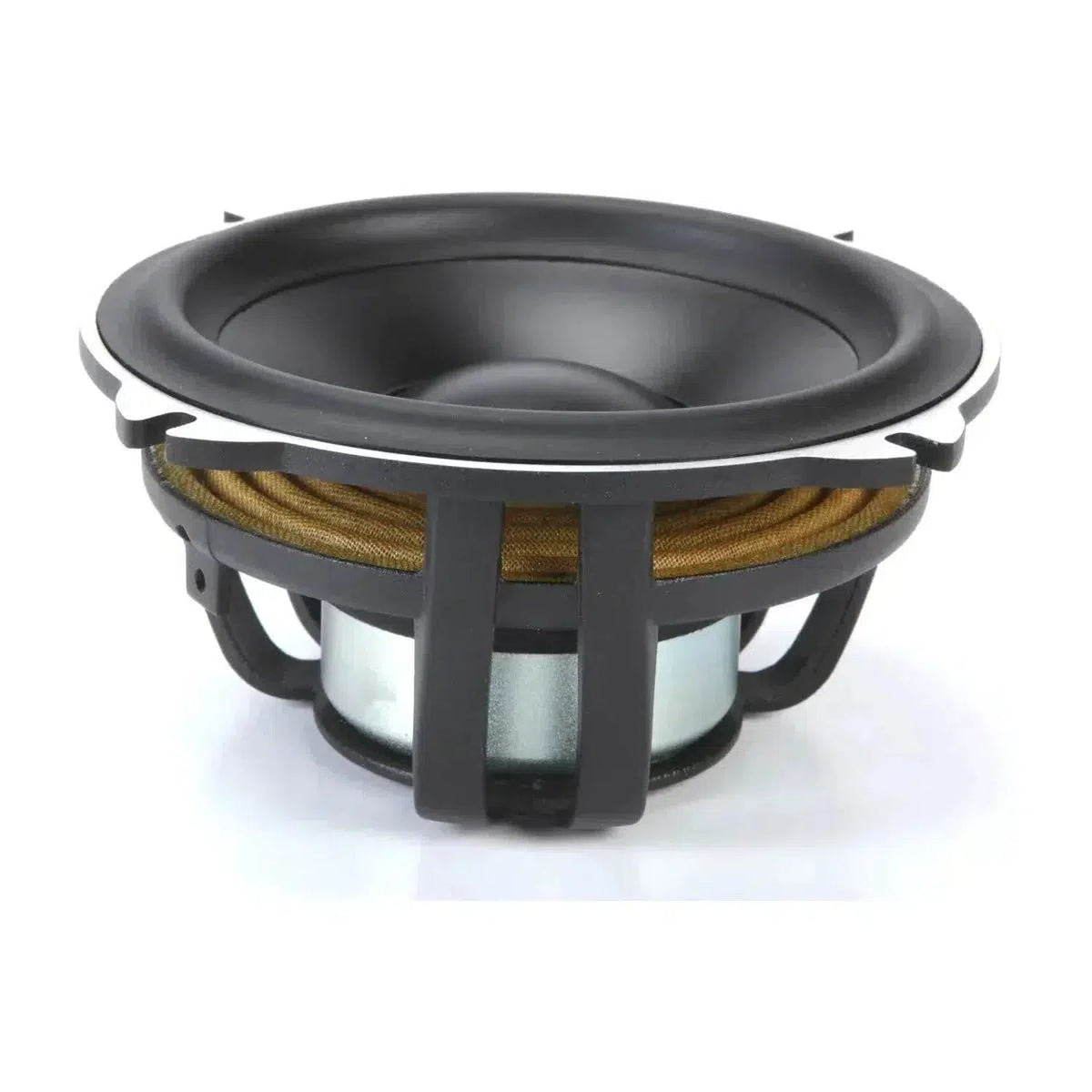

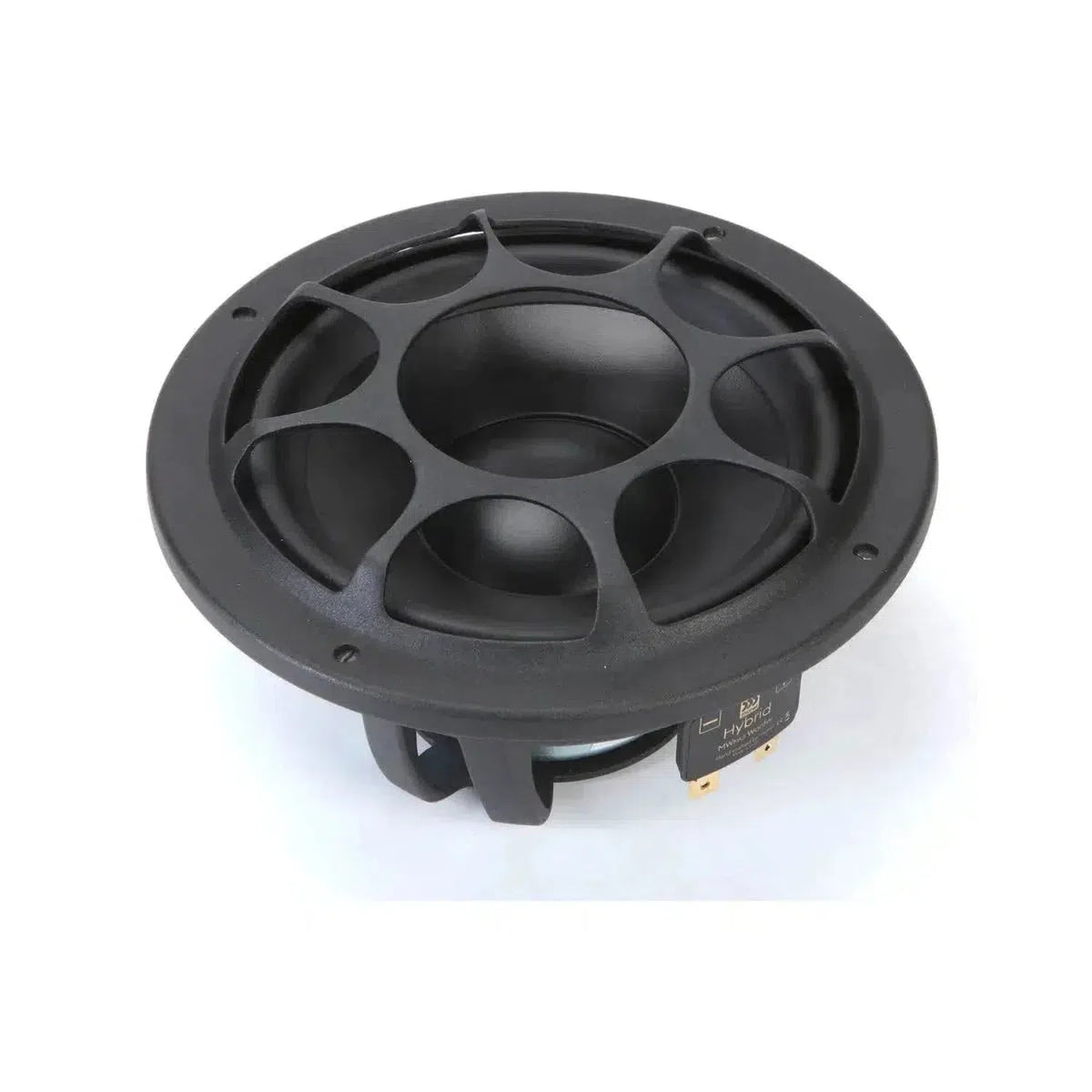

  • Two MW5 mkII woofers

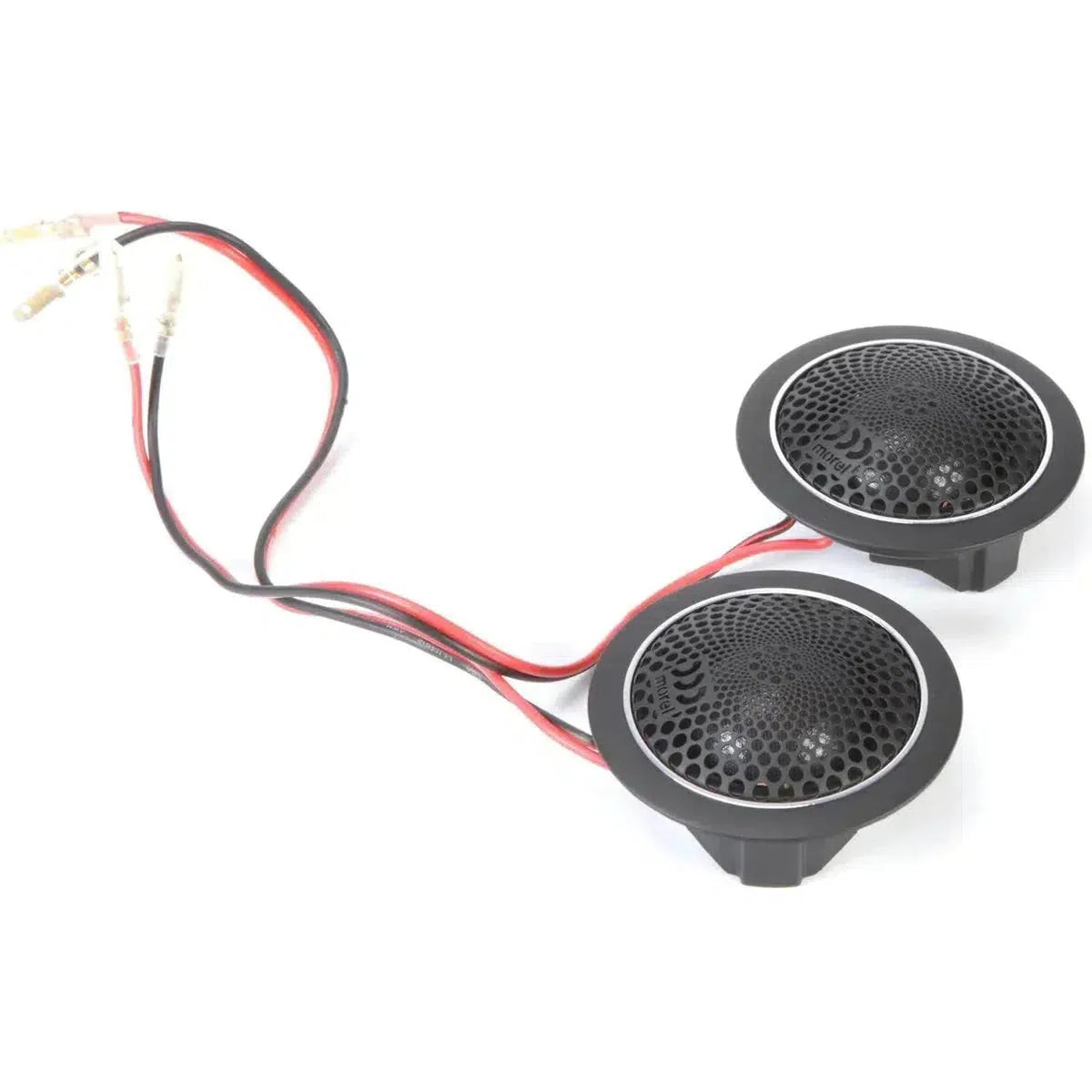

  • Two MT300 tweeters (with included 7" speaker cable)

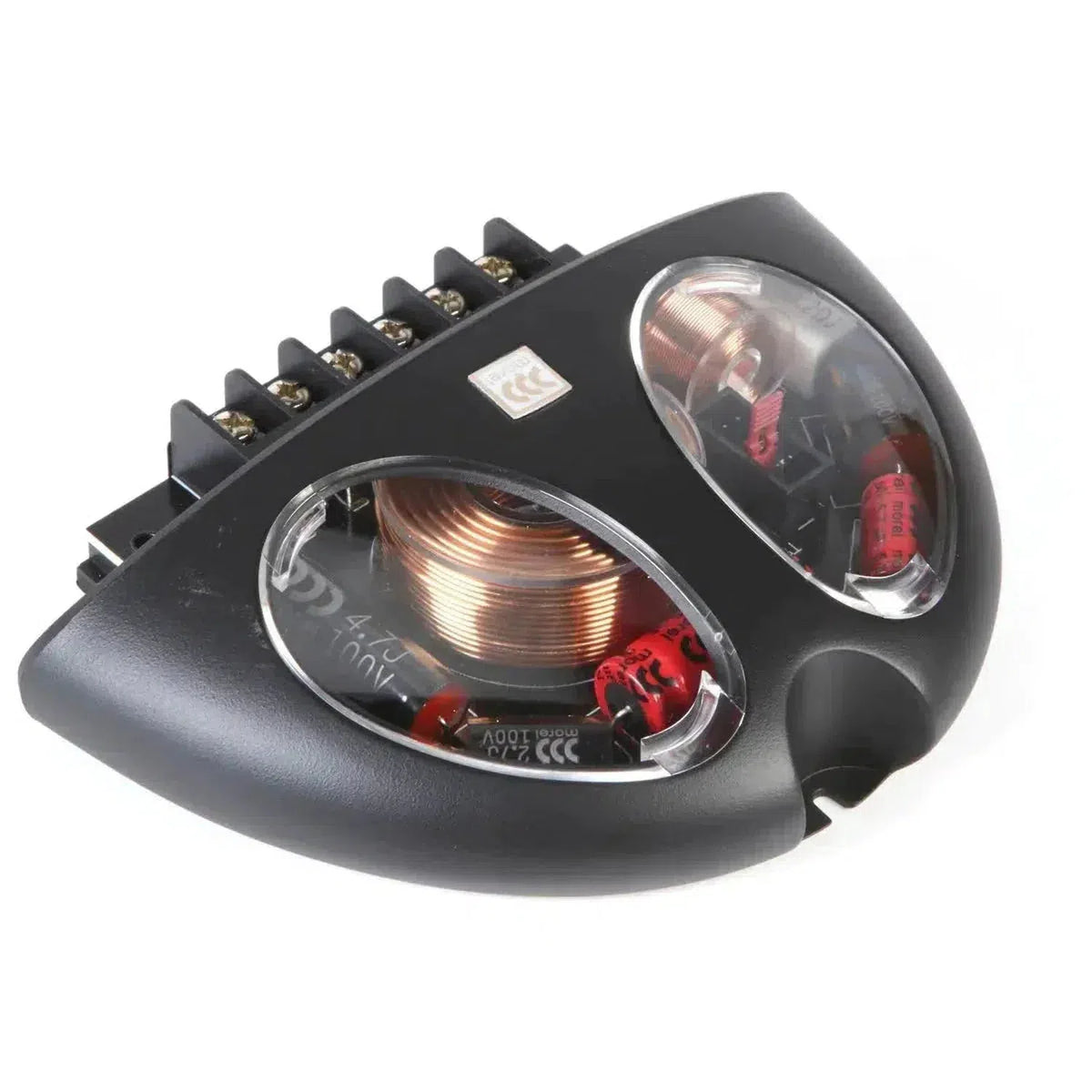

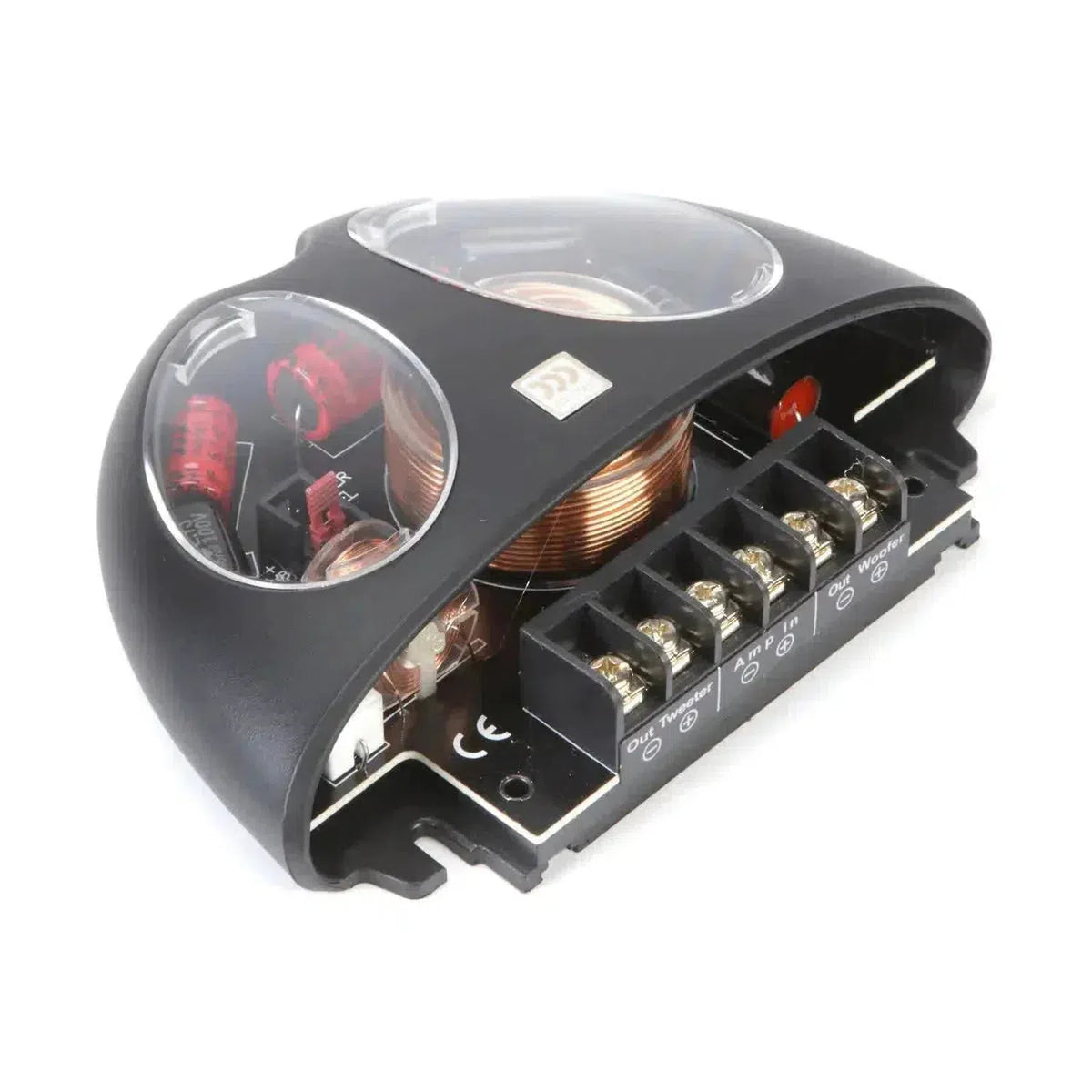

  • 2 MXR240.4 crossovers
  • 2 woofer grilles
  • 2 flush-mount tweeter housings (with built-in tweeters)
  • 2 flush-mount brackets
  • 2 angled tweeter housings for surface mounting
  • Six 3/4 inch screws
  • Four 1" screws
  • Eight 1-1/4 inch screws
  • 8 speed clips
  • Installation guide

Frequently Asked Questions about Hybrid 52

What technical features does the Morel Hybrid 52 speaker have?

The Morel Hybrid 52 is a 2-way 5-1/4 inch speaker system with two woofers and two tweeters, as well as external crossovers. The woofers are equipped with a robust, one-piece dust cap and membrane structure, utilizing the Hexatech aluminum voice coil for optimal performance. The tweeters feature an Acuflex-coated silk dome, which provides excellent damping. The external crossover allows for two level settings for the tweeters, which can be adjusted for an ideal sound mix.

What is the power and load capacity of the Morel Hybrid 52?

The Morel Hybrid 52 speaker system is designed for up to 120 watts RMS, ensuring high load capacity under various conditions. The frequency response ranges from 45 to 25,000 Hz, allowing it to cover both low and very high frequencies. This wide frequency range supports an incredibly broad stereo image. With a sensitivity of 90 dB at 2.83 V, the system is capable of delivering high performance with relatively low amplifier usage.

What special features does the tweeter of the Morel Hybrid 52 offer?

The MT300 tweeter of the Morel Hybrid 52 features an Acuflex-coated silk dome, specifically optimized for high damping and a clear, warm sound. This coating combined with the soft dome technology allows for outstanding detail accuracy in the highs. The tweeter is adjustable in two stages to optimally adapt the sound to the acoustic conditions in the vehicle, which is particularly beneficial in varying interior dimensions and characteristics.

What installation dimensions are required for the Morel Hybrid 52 speaker system?

For the installation of the Morel Hybrid 52 speaker system, specific installation dimensions must be observed. The installation depth of the Tweeter is 1.3 cm and that of the woofer is 6.2 cm. The diameter of the woofer cutout requires 12.2 cm. These dimensions play a crucial role in planning the installation and should be checked carefully to avoid complications. Note that Grilles are included for both the woofers and the tweeters, providing additional flexibility in mounting.

How do the neodymium and ferrite magnets affect sound quality?

The use of neodymium and ferrite magnets in the Morel Hybrid 52 speaker system delivers improved drive performance for the woofer, which directly impacts sound quality. Neodymium magnets are known for their high energy, allowing for efficient distortion reduction. Ferrite magnets provide a stable magnetic base, which, in combination with neodymium, enables accurate and powerful bass reproduction as well as clear high-frequency representation. The interplay of these different types of magnets ensures a balanced sound experience.

What are the advantages of the Hexatech aluminum voice coil?

The Hexatech aluminum voice coil of the Morel Hybrid 52 speakers offers significant advantages in terms of heat dissipation and efficiency. The unique Hexatech structure ensures even heat distribution, increasing the thermal resilience of the system and reducing distortion. At the same time, the material optimizes conductivity, leading to improved energy transfer. These factors contribute to the longevity and performance of the system, especially at high volumes or in demanding environments.

How is the volume of the tweeters in the Morel Hybrid 52 system adjusted?

The volume of the tweeters in the Morel Hybrid 52 speaker system is adjusted via the external crossovers, which provide two level settings for the tweeters. This individual adjustability allows you to tailor the sound to the acoustic characteristics and your personal preferences. Especially in different vehicle interiors, the ability to modify the tweeter sensitivity can be crucial in achieving optimal sound. Such adjustments are particularly useful for compensating unwanted high reflections or overemphasis.

What accessories are included with the Morel Hybrid 52 speaker?

The Morel Hybrid 52 speaker package includes two MW5 mkII woofers, two MT300 Tweeters with an included 7" speaker cable, two MXR240.4 crossovers, Grille for woofers, housing for flush and surface mounting of the tweeters, as well as various screws of different lengths and installation elements. A comprehensive installation manual completes the package to facilitate the installation. This accessory allows for seamless integration of the speaker system into a variety of vehicles.

How does the aluminum die-cast basket affect the performance of the Morel Hybrid 52?

The aluminum die-cast basket of the Morel Hybrid 52 speaker system provides a stable and resonance-free base for the woofers. It reduces unwanted vibrations, ensuring clear, uncolored sound. Aluminum is known for its high thermal conductivity, which improves heat dissipation from the voice coil, thereby optimizing the speaker's performance. These properties help ensure that the speaker operates reliably even at high levels, which is particularly beneficial for loud music enthusiasts.

Can the Morel Hybrid 52 be installed in different vehicle models?

The compatibility of the Morel Hybrid 52 speaker system with various vehicles is determined by the precise consideration of dimensions. The woofers require a cutout diameter of 12.2 cm and a mounting depth of 6.2 cm, while the tweeters require a mounting depth of 1.3 cm. These specific dimensions are crucial for integration into vehicles of different manufacturers and models, provided that there is sufficient space. Soundproofing materials or model-specific adapters may be necessary to achieve the best installation.
