3. HTX 8 M-FL-TC

HTX 8 M-FL-TC

100 Watt

HTX 8 M-FL-TC

Technical Highlights

  • Power RMS 100W, impedance 4 Ohm, frequency response 45 Hz-25k Hz.
  • Tweeter neodymium magnet, polypropylene membrane, UV inhibitors.
  • RGB LED lighting, HTX accessories, salt and UV protection IP65.
  • More technical details
€334.40
€349.00 €334.40
2% discount with credit card

Your price match offer

ProductHTX 8 M-FL-TC

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT
Estimated delivery: Sep 22–Sep 25.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms
datasheet
Hertz-HTX 8 M-FL-TC-8" (20cm) Marine-Gehäuselautsprecher-masori-kaufen
€334.40
€349.00 €334.40

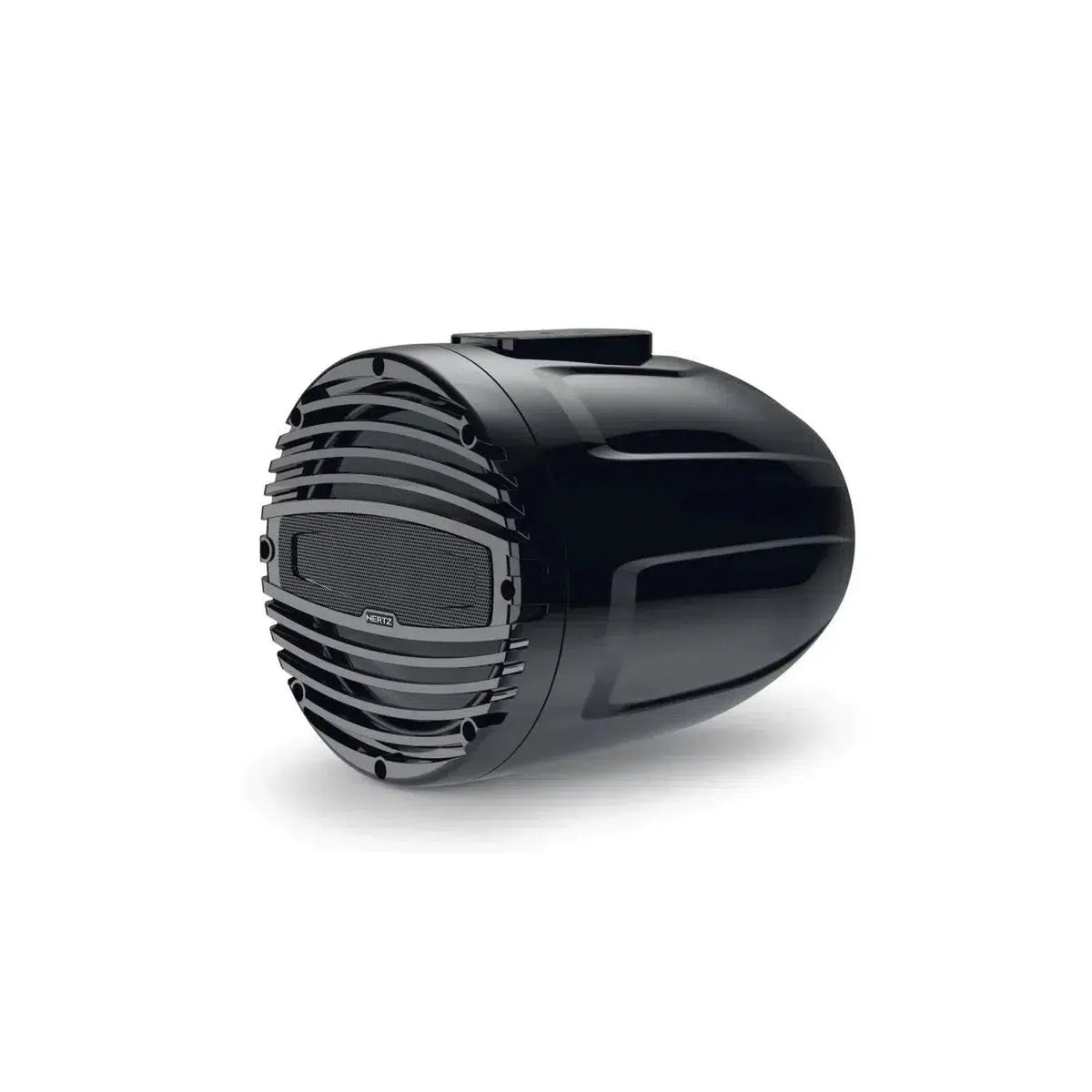

HTX 8 M-FL-TC is an 8-inch (20 cm) marine enclosure speaker from Hertz in anthracite color. Integrated RGB LED front lighting, optional rear RGB lighting via HTX RGB LOGO.1 in black or white. Mounting and quick alignment in any tower position through patented Q-OS² technology and 316 stainless steel clamp fastening. Hertz logo adjustable in 64 steps. Protection class IP65 as well as ASTM-D4329 for UV resistance and ASTM-B117 for salt mist operability. Coaxial design with 32 mm long-stroke voice coil woofer with polypropylene diaphragm with UV inhibitors and neodymium tweeter; woofer magnet made of high-density ferrite. Frequency response 45 Hz to 25 kHz, 100 W RMS, 200 W Peak, 4 Ohm. Tweeter diaphragm 36 mm, tweeter voice coil 20 mm, depth 231 mm.

Features
  • 8-inch (20 cm) marine enclosure speaker
  • Color anthracite
  • Integrated RGB LED front lighting
  • Optional rear RGB lighting via HTX RGB LOGO.1 in black or white
  • Patented Q-OS² technology for mounting and quick alignment in any tower position
  • 316 stainless steel clamp fastening
  • Hertz logo adjustable in 64 steps
  • Coaxial 8-inch design
  • Woofer with 32 mm long-stroke voice coil
  • Diaphragm polypropylene with UV inhibitors
  • Tweeter with neodymium magnet
  • Woofer magnet high-density ferrite
  • Front grille tone-on-tone matching the grille color
  • Protection class IP65, ASTM-D4329 UV resistance, ASTM-B117 salt mist operability
Technical Specifications
  • Size 200 mm
  • RMS power 100 W
  • Peak power 200 W
  • Impedance 4 Ohm
  • Depth 231 mm
  • Tweeter diaphragm 36 mm
  • Woofer voice coil Ø 32 mm
  • Tweeter voice coil Ø 20 mm
  • Frequency response 45 Hz – 25 kHz
  • Woofer magnet size 90 x 40 x 20 mm
  • Tweeter magnet size 19.7 x 3 mm
  • Weight per speaker 5.4 kg
  • Xmech ±8.5 mm
  • Effective diameter D 174 mm
  • DC resistance Re 3.4 Ohm
  • Resonance frequency Fs 51 Hz
  • Voice coil inductance Le 0.46 mH
  • Equivalent volume Vas 26.1 l
  • Moving mass Mms 30 g
  • Compliance Cms 0.33 mm/N
  • Force factor Bl 6.33 T·m
  • Total quality factor Qts 0.78
  • Electrical quality factor Qes 0.82
  • Mechanical quality factor Qms 14.7
  • Sound pressure level 91 dB
  • Dimensions A 225 mm, B 288 mm, C 231 mm, D 6 mm

Frequently Asked Questions about HTX 8 M-FL-TC

What is the RMS power of the Hertz HTX 8 M-FL-TC Enclosed Speaker?

The RMS power of the Hertz HTX 8 M-FL-TC is 100 watts. This nominal power indicates how much continuous power the speaker can handle without damage. Combined with a peak power handling of 200 watts, the speaker has enough reserves to deliver clear and powerful sound even at higher volumes. Especially during outings on the water, the performance of these Enclosed Speakers can be crucial to overpower external noise and ensure a consistent listening experience.

What frequency ranges does the HTX 8 M-FL-TC cover?

The Hertz HTX 8 M-FL-TC covers a frequency range from 45 Hz to 25 kHz. This bandwidth ensures that both deep bass and high frequencies are reproduced effortlessly. Particularly in marine environments, where acoustic clarity is important, the frequency response shows its strengths. The combination of a 32 mm long-stroke voice coil woofer and a neodymium magnet tweeter helps to perfectly cover different frequency spectra, ensuring high sound quality, especially across various music genres.

What is the protection class of the HTX 8 M-FL-TC?

The HTX 8 M-FL-TC has an IP65 protection rating. This classification indicates that the speaker is protected against dust and water jets, which is especially important for use on boats. The IP65 certification means that the speakers operate reliably in marine environments without water splashes or humid conditions affecting functionality. Additionally, the product meets ASTM D4329 standards for UV resistance and ASTM B117 standards for operability in saline environments, promising extra durability and robustness in outdoor applications.

What is the impedance of the Hertz HTX 8 M-FL-TC Enclosed Speaker?

The impedance of the Hertz HTX 8 M-FL-TC is 4 ohms. This impedance is typical for many speakers and allows operation with a variety of stereo systems. A 4-ohm speaker can handle a higher current flow and thus a higher power, resulting in powerful playback even at low amplifier outputs. The 4 ohms also support integration into existing audio systems, whether on recreational boats or larger yachts, allowing for optimal adaptation to existing amplifier technology.

What features does the RGB LED lighting of the HTX 8 M-FL-TC offer?

The integrated RGB LED lighting of the HTX 8 M-FL-TC provides an appealing visual display. With the radio frequency remote control HM-RGB-1-BK, you can adjust the color of the lighting to match the design of your boat or create a light show that responds to the tempo of the music. This feature highlights the aesthetic aspects of the speaker and can significantly enhance the atmosphere on board. Combined with the optional Hertz LED logo on the back of the speaker, a harmonious overall appearance is created, which is particularly impressive during evening outings.

What are the dimensions of the Hertz HTX 8 M-FL-TC?

The HTX 8 M-FL-TC has an overall depth of 231 mm, a maximum width of 288 mm, and a height of 225 mm. The depth and diameter measurements of 200 mm facilitate integration into various audio setups on boats. Particularly, the depth of 231 mm is crucial for the installation depth you need to consider during installation. These dimensions give the product a compact yet robust character, making it ideal for space-saving applications. These dimensions are essential to ensure that the speaker fits optimally in the intended position on the boat.

How is the installation of the Hertz HTX 8 M-FL-TC made easier?

The installation of the Hertz HTX 8 M-FL-TC is significantly simplified by the patented Q-OS² technology. This allows the speaker to be installed in any tower position, providing flexibility in placement. Supported by a 316 stainless steel clamp attachment, easy and quick alignment is ensured. The Hertz logo can be aligned in 64 steps, ensuring precise optical adjustment. This innovative technique makes the setup and fine-tuning of the speaker on various types of ships straightforward and quick, without compromising sound transmission quality or aesthetic presentation.

What materials are used in the membranes of the HTX 8 M-FL-TC?

The membrane of the Enclosed Speaker in the HTX 8 M-FL-TC is made of polypropylene, which is injected with UV inhibitors. This increases durability and weather resistance, especially in marine environments. The 32 mm long-stroke voice coil Enclosed Speaker and the 1.26-inch neodymium magnet tweeter contribute to a precise and high-quality sound image. The tweeter voice coil has a diameter of 20 mm. This combination of high-quality materials ensures excellent sound processing and resistance to influences such as saltwater and strong sunlight.

What advantages does the neodymium magnet of the tweeter in the HTX 8 M-FL-TC offer?

The neodymium magnet in the tweeter of the Hertz HTX 8 M-FL-TC is known for its strong magnetic effect in a small volume. Neodymium allows for a compact tweeter design that still provides very high performance. This results in clear and precise high-frequency reproduction, which is particularly advantageous in outdoor environments. Neodymium magnets are lighter and more efficient compared to other types of magnets, positively affecting the weight of the speaker. This property is especially important in marine applications, where stability and weight distribution can be crucial.

Why is the Hertz HTX 8 M-FL-TC ideal for use on sports boats?

The HTX 8 M-FL-TC from Hertz is ideal for sports boats due to its robust construction and IP65 protection rating, making it resistant to water and dust. The use of UV-resistant materials for the membrane and the ASTM-B117 certification for salt mist resistance increase the lifespan and reliability of the speaker in harsh environments. Additionally, the Q-OS² technology allows for easy installation in variable positions. The RGB LED lighting provides a stylish addition to the aesthetics of the boat and can be adapted to the ambiance, enriching the experience on the water not only acoustically but also visually.
