3. Competition GZCT 0500X

Competition GZCT 0500X

30 Watt

Competition GZCT 0500X

Technical Highlights

  • Power: 30/100 Watts, Impedance: 4 Ohms, Efficiency: 102 dB.
  • Frequency Response: 4000 Hz – 25 kHz, CCA Voice Coil: 25 mm.
  • Neodymium Magnet, Aluminum Dome, Anodized Aluminum Housing.
  • More technical details
€71.29
-10% €79.00 €71.29
2% discount with credit card

Your price match offer

ProductCompetition GZCT 0500X

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT
Estimated delivery: Sep 21–Sep 24.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms
datasheet

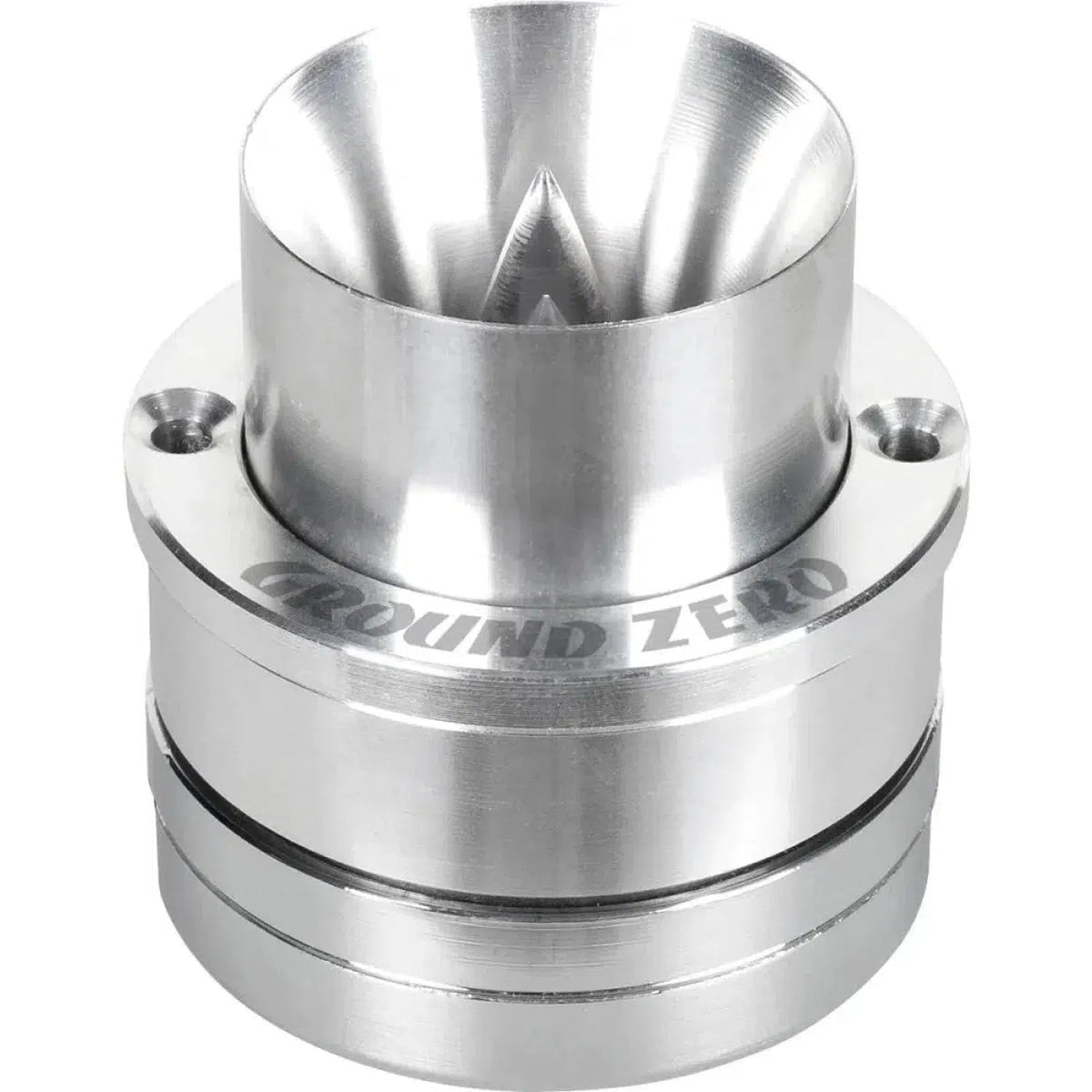

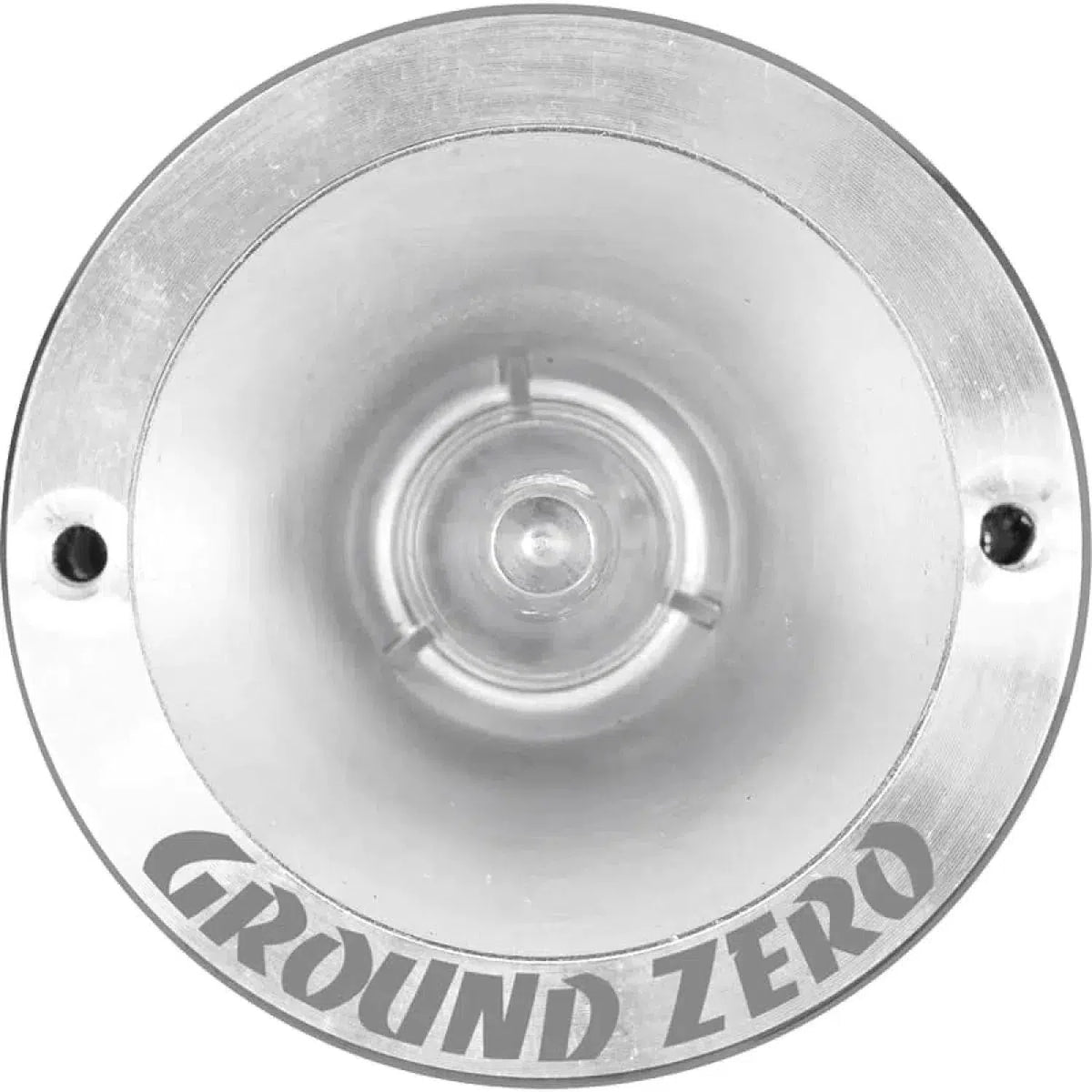

The Ground Zero Competition GZCT 0500X is a polished metal car audio Horn-Hochtöner with a flared cone, mounting holes, and GROUND ZERO engraving.
€71.29
€79.00-10% €71.29

Competition GZCT 0500X is a Horn Tweeter from Ground Zero. It features a 25 mm CCA voice coil and an aluminum diaphragm. A neodymium magnet and an anodized aluminum housing are integrated. The design is specified as a compression tweeter with an aluminum dome. The radiation angle is 30 degrees. Specified values: 4 Ohm impedance, 30 Watts RMS, 100 Watts maximum, 102 dB efficiency, and a frequency response of 4000 Hz to 25 kHz. The installation diameter is 43 mm, and the installation depth is 43 mm. A screw terminal is included. Delivery includes: 1 piece per package.

Features
  • Horn Tweeter
  • Compression Tweeter
  • 25 mm CCA voice coil
  • Aluminum diaphragm
  • Neodymium magnet
  • Anodized aluminum housing
  • Screw terminal
  • 1 piece per package
Technical Data
  • Design: Compression tweeter with aluminum dome
  • Power handling RMS: 30 Watts
  • Power handling max.: 100 Watts
  • Impedance: 4 Ohm
  • Efficiency: 102 dB
  • Frequency response: 4000 Hz – 25 kHz
  • Voice coil: 25 mm
  • Dome: Aluminum
  • Radiation angle: 30 degrees
  • Installation diameter: 43 mm
  • Installation depth: 43 mm

Frequently Asked Questions about Competition GZCT 0500X

What distinguishes the Competition GZCT 0500X Horn Tweeter from Ground Zero?

The Competition GZCT 0500X Horn Tweeter from Ground Zero is characterized by a combination of technical finesse and durable materials. It features a 25 mm CCA voice coil that ensures efficient sound conversion, and an aluminum diaphragm responsible for clear, precise high-frequency reproduction. The tweeter is equipped with a neodymium magnet that maximizes its performance, and an anodized aluminum housing adds extra robustness. Particularly practical is the screw connection, which allows for effortless installation. With a radiation angle of 30 degrees, a comprehensive listening experience is guaranteed.

What are the technical parameters of the Competition GZCT 0500X regarding power and resistance?

The Competition GZCT 0500X is capable of handling an RMS power rating of 30 watts and a maximum power rating of 100 watts, making it a powerful component for any sound system. It operates with an impedance of 4 ohms, which means it is compatible with most amplifiers and ensures efficient operation. These power values allow the tweeter to be used in demanding music genres without compromising sound quality. The perfect combination of power and resistance makes it ideal for audio enthusiasts who value detail in sound.

What frequency ranges does the Competition GZCT 0500X cover?

The Competition GZCT 0500X covers a wide frequency range from 4000 Hz to 25 kHz. This ensures that it can reproduce both mid to high frequencies and the highest tones clearly and brilliantly. This frequency range is crucial for audio enthusiasts who desire a full sound spectrum. It is particularly important for the representation of instruments and high vocal passages to perceive all the details and nuances of the music.

What are the dimensions of the Competition GZCT 0500X and what does that mean for installation in a vehicle?

The Competition GZCT 0500X has a mounting diameter of 43 mm and a mounting depth of 43 mm as well. These compact dimensions allow the tweeter to be integrated into a variety of vehicle models without the need for significant modifications. Thanks to the screw connection, flexible mounting is possible, which greatly simplifies the installation process and allows the installation location to vary according to acoustic requirements. With these dimensions, the Competition GZCT 0500X is particularly advantageous for car installations where space-saving is essential.

What materials were used in the design of the Competition GZCT 0500X and why are they important?

The Competition GZCT 0500X uses premium materials to ensure a long lifespan and outstanding sound quality. The aluminum diaphragm is crucial for precise and clear sound reproduction and is also lightweight to allow for quick movements. The CCA voice coil ensures efficient energy conversion, while the neodymium magnet provides strong magnetic field strength, enhancing dynamics and sound pressure. Additionally, the anodized aluminum housing not only effectively protects the internal components but also contributes to overall robustness.

What is the efficiency of the Competition GZCT 0500X and what advantages does it offer?

The efficiency of the Competition GZCT 0500X is an impressive 102 dB, which means that the tweeter can play very loudly even with low input power. This is particularly advantageous in a car, where amplifier power is often limited or where one wants to achieve powerful sound without additional power. A high efficiency allows for accurate sound reproduction even at low volumes and contributes to the energy efficiency of the entire sound system, which in turn preserves battery life.

What makes the screw connection of the Competition GZCT 0500X special?

The screw connection of the Competition GZCT 0500X offers a specific mounting advantage as it allows for easy and secure installation. This connection ensures that the link between the tweeter and the cables remains robust and stable, benefiting sound quality. Even with vibrations and shocks, the connection remains secure, making it ideal for use in vehicles. The screw connection also minimizes the risk of short circuits and failures, allowing for stress-free integration of the tweeter into existing audio setups.

What sound characteristics does the Competition GZCT 0500X have due to its radiation angle?

With a radiation angle of 30 degrees, the Competition GZCT 0500X offers a unique sound characteristic that creates a wide and even sound field. This means that the sound is spread wider, leading to a balanced sound image in the vehicle. As a result, every listener, regardless of their seat, will experience a consistent listening environment. This ensures that the highs are detailed and the sonic nuances are optimally highlighted, which is particularly advantageous in vehicles where speaker placement can be limited.

Is the Competition GZCT 0500X compatible with various car brands?

Due to its standard size with a mounting diameter of 43 mm, the Competition GZCT 0500X is compatible with a variety of common car brands. However, this compatibility mainly depends on the specific dimensions and available mounting depth in the speaker positions of the vehicles. The compact size allows for installation in tight spaces, which often represent restricted mounting locations for speakers in modern vehicles. It is advisable to check the exact measurements of a vehicle's mounting cavities to ensure that the tweeter fits without modifications.

What advantages does the CCA voice coil offer in the Competition GZCT 0500X?

The CCA voice coil used in the Competition GZCT 0500X, made of copper-coated aluminum wire, combines the benefits of copper and aluminum. It allows for efficient power handling and effectively conducts electricity while being lighter than pure copper voice coils. This lightweight design enables faster movement of the diaphragm, improving sound reproduction, especially at high frequencies, and minimizing distortion. This results in a clearer and less resonant sound experience when using the Horn Tweeter, which audio enthusiasts will particularly appreciate.
