3. Raptor 4mm

Raptor 4mm

Raptor 4mm

Technical Highlights

  • Sound attenuation of up to 30 dB, temperature resistant from -50°C to 150°C.
  • Acoustic butyl, panel size 480 x 700 mm, thickness 4 mm.
  • Adhesive strength of 6-8N/cm, waterproof, weight 4.76 kg/m².
  • More technical details
€114.00
-5% €120.00 €114.00
2% discount with credit card

Your price match offer

ProductRaptor 4mm

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT
Estimated delivery: Sep 21–Sep 24.
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms
Comfort Mat-Raptor 4mm-Dämpfung-masori-kaufen
€114.00
€120.00-5% €114.00

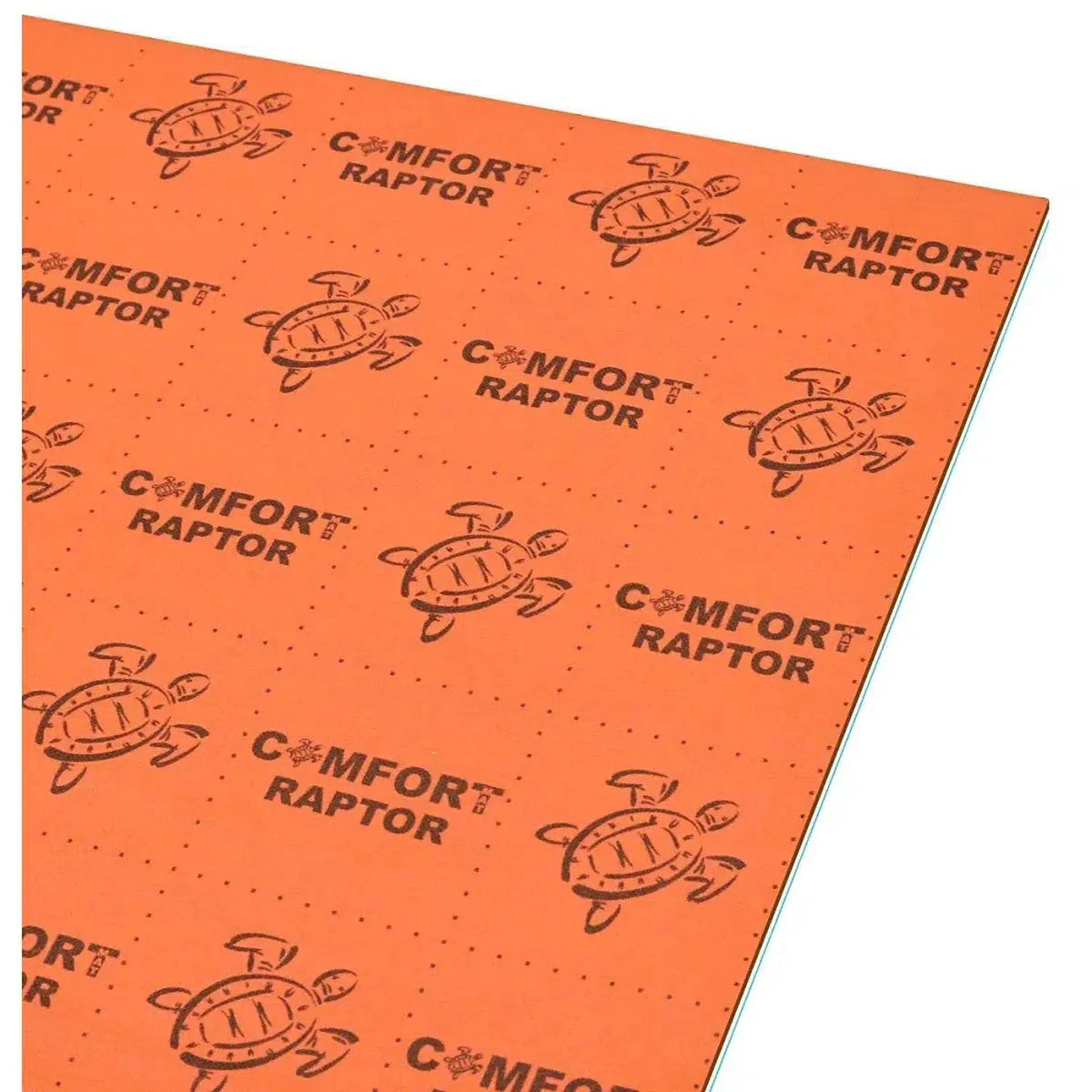

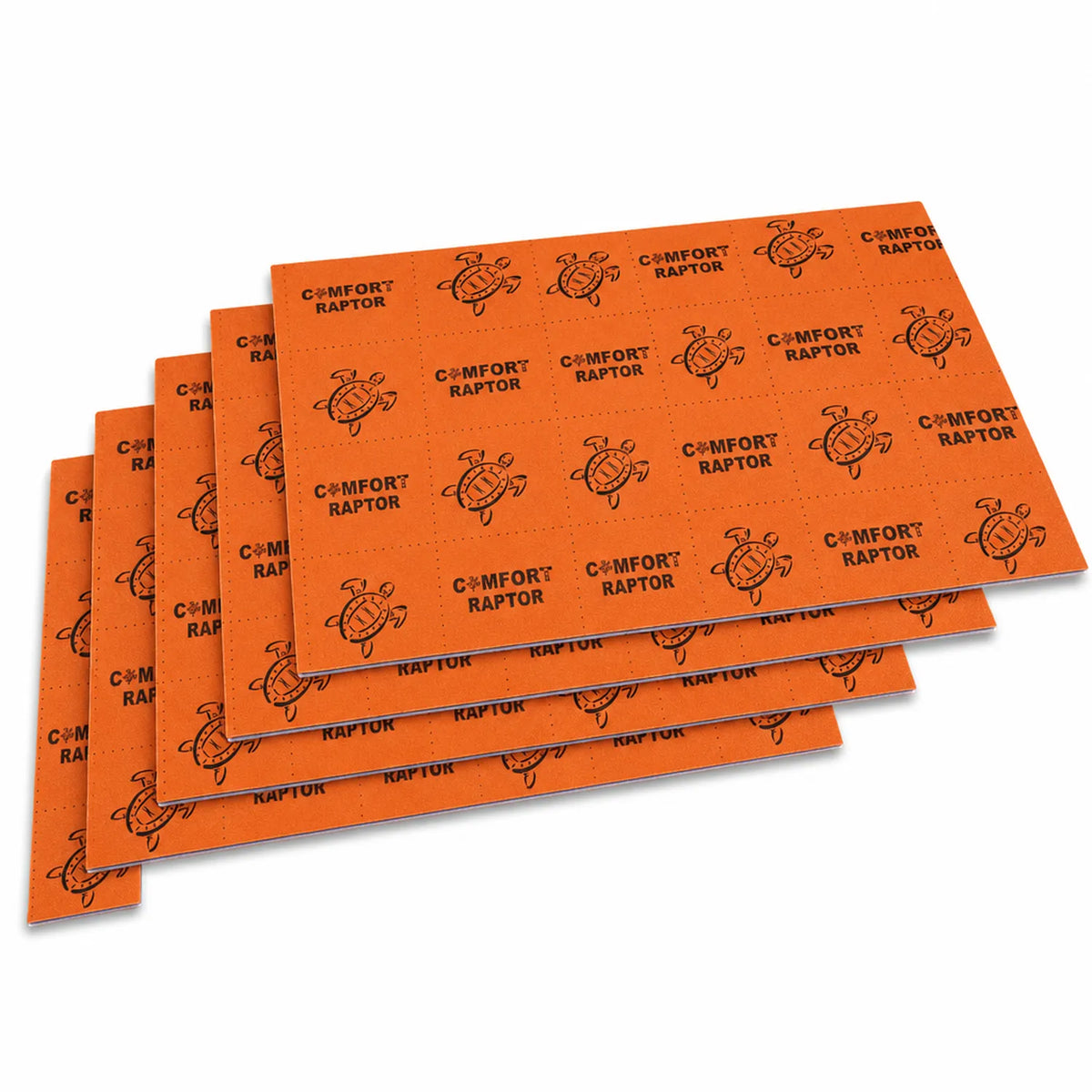

Raptor 4mm is a damping from Comfort Mat with a multi-layer, lightweight sound insulation structure. The material consists of three layers with a special membrane, acoustic butyl, and a sealing adhesive. The thickness is 4 mm, the panel size is 480 x 700 mm, and the area weight is 4.76 kg/m² at 1.6 kg per panel. The adhesion value is 6–8 N/cm. The operating temperature range is -50 to +150 °C. Water resistance and strong adhesion due to the butyl adhesive are present. Designed for use as a second layer. Noise reduction of up to 30 dB. Color orange. 5 pieces per pack.

Features
  • Damping
  • Multi-layer sound insulation material

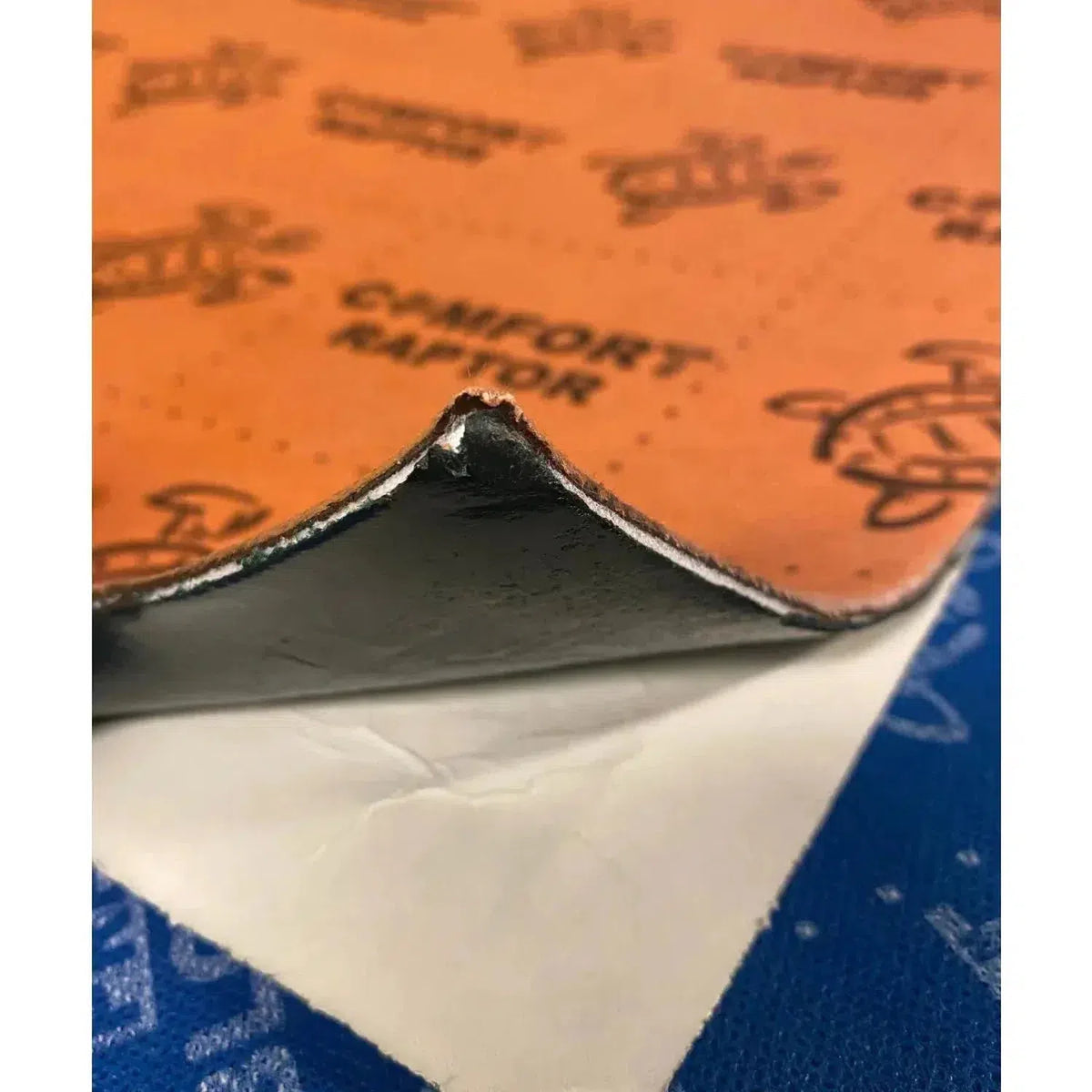

  • Three layers with a special membrane, acoustic butyl, and sealing adhesive
  • Water resistant
  • Strong adhesion due to butyl adhesive
  • Used as a 2nd layer
  • Applications: door outer sheet, sheet metal walls in vans, vehicle floor, wheel arches, front wall
  • Color: orange
  • 5 pieces in a pack
Technical Data
  • Thickness: 4 mm
  • Panel size: 480 x 700 mm
  • Panel weight: 1.6 kg
  • Weight: 4.76 kg/m²
  • Adhesion: 6–8 N/cm
  • Operating temperature range: -50 to +150 °C
  • Noise reduction: up to 30 dB

Frequently Asked Questions about Raptor 4mm

What are the technical specifications of the Raptor 4mm soundproofing from Comfort Mat?

The Raptor 4mm soundproofing from Comfort Mat consists of a three-layer structure that includes acoustic butyl and a special sealing adhesive. The panel size is 480 x 700 mm with a thickness of 4 mm and a weight of 1.6 kg. The total weight is 4.76 kg/m2. The adhesion is specified at 6-8N/cm, indicating a very strong adhesive power, ideal for sound insulation applications in vehicle construction. The Raptor 4mm improves sound protection by up to 30 dB and remains stable in a temperature range of -50 to +150°C. Additionally, the material is water-resistant.

How does the material thickness of the Raptor 4mm affect sound protection?

The material thickness of the Raptor 4mm from Comfort Mat is exactly 4 mm, which leads to a significant reduction in noise levels by up to 30 dB. This thickness allows for effective absorption and isolation of sound vibrations by creating a physical barrier that blocks and dampens sound waves. The combination of acoustic butyl and the multilayer structure of the material is specifically designed to effectively manage both high and low frequencies. Especially in environments where noise needs to be dampened, this mat thickness is ideal as a secondary insulation layer.

How do I effectively install the Raptor 4mm as a second layer in the car?

The installation of the Raptor 4mm as a second layer ideally takes place on the outer door sheet or metal walls in vans, vehicle floors, wheel arches, and front walls. You should ensure that the surface is clean and dry to maximize the adhesion of the butyl adhesive, which has a strength of 6-8N/cm. Cut the mats to the required size (panel size is 480 x 700 mm) and press them firmly against the surface. Make sure that the temperatures are within the range of -50 to +150°C, where the Raptor 4mm performs optimally. It is waterproof and therefore particularly durable.

What advantages does the water resistance of the Raptor 4mm from Comfort Mat offer?

The waterproofing of the Raptor 4mm from Comfort Mat effectively protects against moisture, extending its lifespan in damp environments. This feature is particularly useful in vehicle applications, as the mats are often exposed to moisture while still needing to retain their acoustic properties. The waterproof coating also prevents water ingress, which could lead to deterioration of the structure or adhesive strength. The combination of a waterproof membrane and strong butyl adhesive ensures that the mats remain intact for a long time without losing their effectiveness.

Why should the Raptor 4mm be used as a second layer?

The Raptor 4mm from Comfort Mat is ideally designed as a second layer, as it maximizes the efficiency of the underlying vibration-damping mat. It serves as an additional barrier against sound transmission by dampening frequencies that could penetrate through the first layer. The combination of acoustic butyl and a specially developed membrane allows for effective control of both high and low-frequency noises. If you are looking for a solution to enhance sound insulation and maximize noise suppression, then the Raptor 4mm as a second layer is the perfect choice.

What temperature tolerances does the Raptor 4mm have and why is that important?

The Raptor 4mm from Comfort Mat can be used in a wide temperature range of -50 to +150°C. This temperature resistance is crucial, as conditions in a vehicle, such as in a car, can vary extremely, for example, due to sunlight or winter cold. A material that withstands such extreme fluctuations ensures consistent performance and long-term stability. Especially under hot conditions, it is important that the material does not lose its shape and continues to dampen effectively, while in cold environments it does not become rigid and break.

What makes the adhesive of the Raptor 4mm particularly effective?

The adhesive used in the Raptor 4mm from Comfort Mat is a unique sealing adhesive specifically designed to ensure high adhesive forces of 6-8N/cm. It adheres excellently to various substrates, which is crucial for the long-term stability of sound insulation. The adhesive not only provides a stable attachment but also helps maintain the waterproof property of the material. Especially in automotive applications, where vibrations and temperature fluctuations are common, the adhesive must demonstrate its outstanding performance under demanding conditions.

How does the acoustic butyl of the Raptor 4mm contribute to noise reduction?

The acoustic butyl in the Raptor 4mm from Comfort Mat is a key component that contributes to effective noise reduction. Butyl has excellent damping properties that allow it to absorb sound waves and disperse their energy. This results in a significant reduction of noise by up to 30 dB. Its elastic nature also allows it to conform to the fine contours of the vehicle structure, further enhancing the effectiveness of sound damping. In applications where noise reduction is critical, the acoustic butyl of the Raptor 4mm offers an efficient solution that covers differentiated frequency ranges.

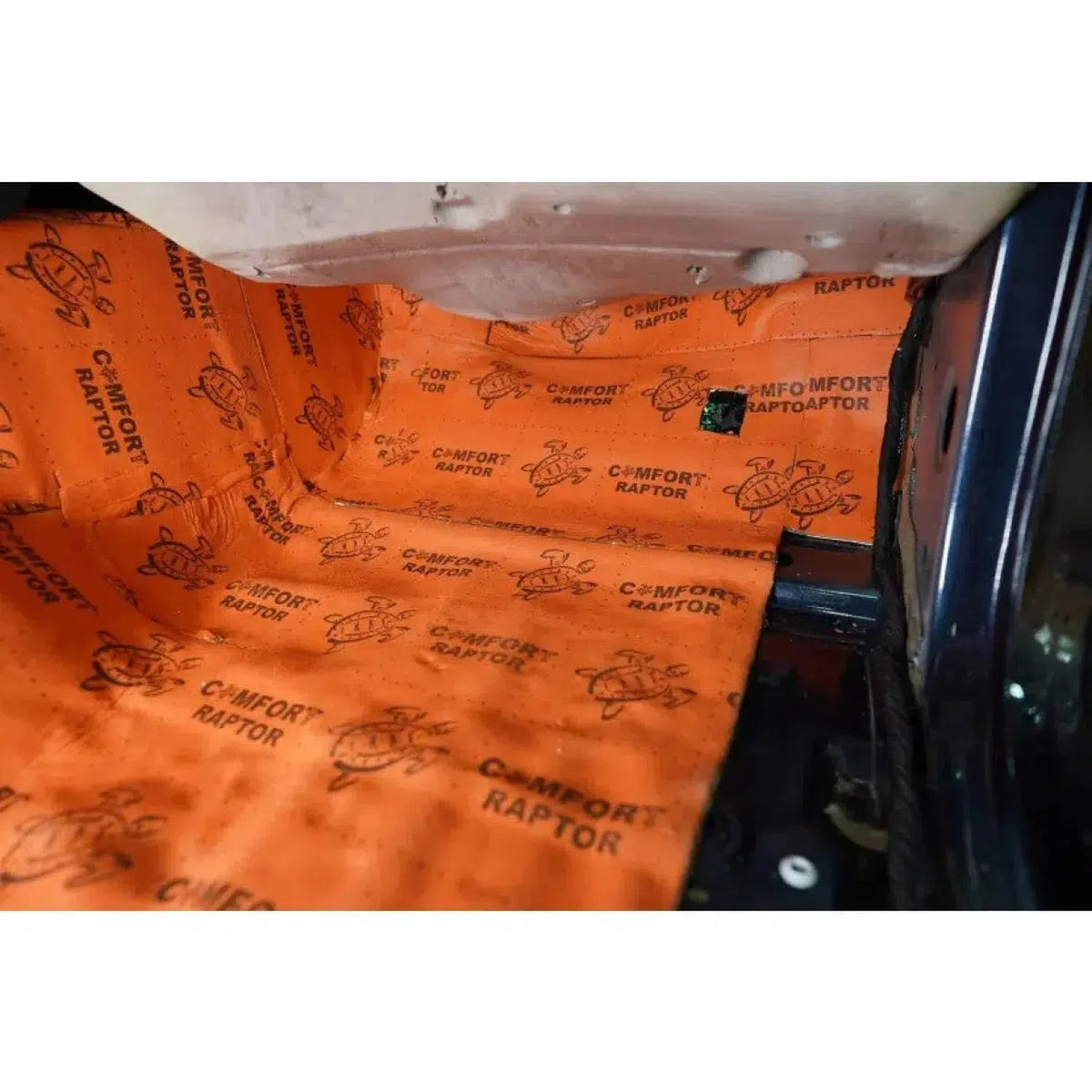

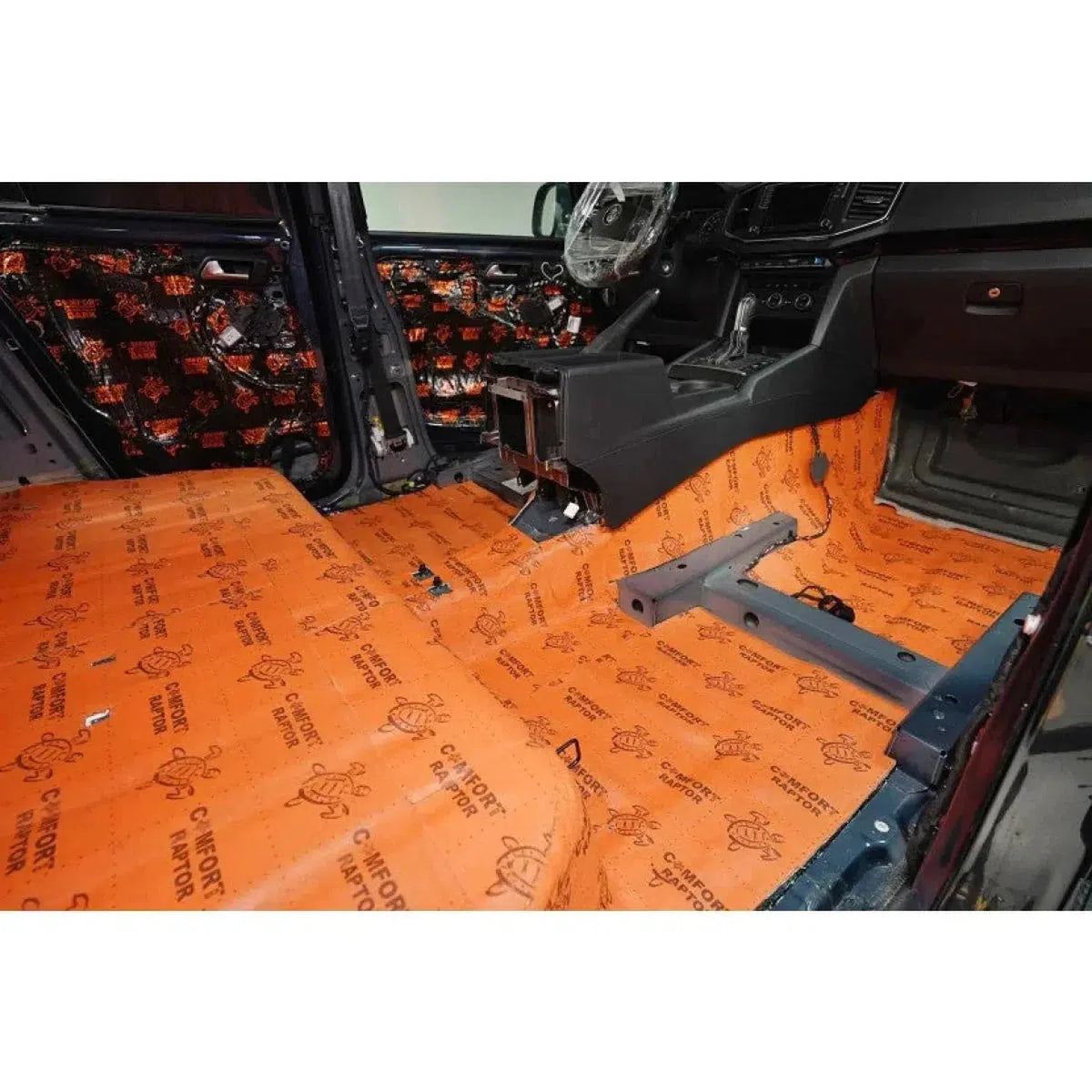

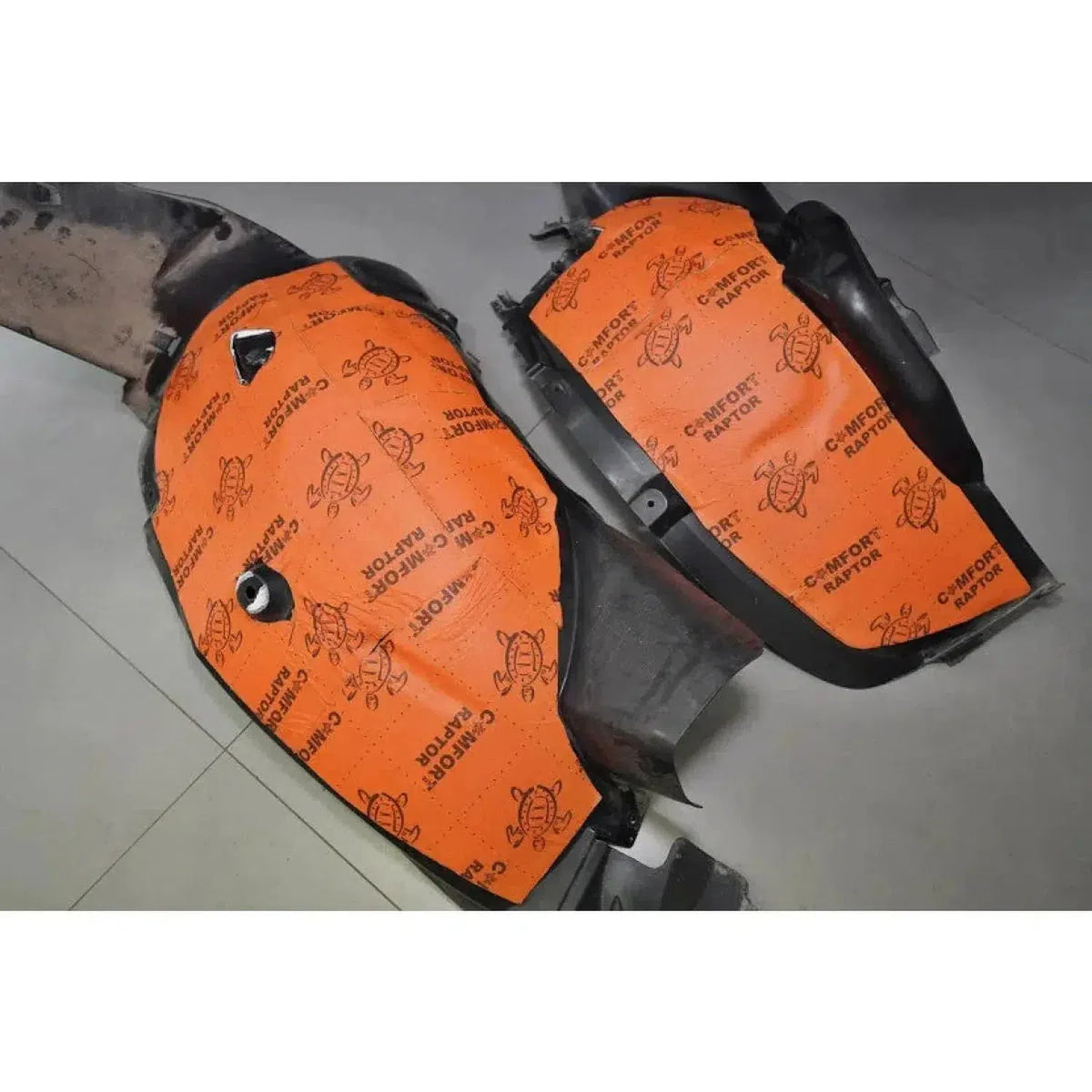

Which vehicle parts is the Raptor 4mm best suited for?

The Raptor 4mm is specifically designed for application on vehicle parts such as the outer door panel, the sheet metal walls of vans, the vehicle floor, wheel arches, and bulkheads. Its water-resistant and highly adhesive outer layer makes it ideal for use in areas exposed to vibrations and moisture. As it is constructed as a secondary insulation layer, it complements the vibration damping materials that are already present and helps to effectively contain both loud sounds and unwanted vibrations. This versatility makes the Raptor 4mm a valuable addition to any vehicle sound insulation project.

How many Raptor 4mm panels do I need for complete vehicle insulation?

A pack of the Raptor 4mm contains five panels measuring 480 x 700 mm. To determine the exact number of panels needed for complete vehicle insulation, you need to measure the total contour area of the parts you want to cover (e.g., outer door panel, sheet metal walls, vehicle floor). The total area directly affects how many packs you will need. Given the panel dimensions and the specific number of layers to be applied, it will be easier to decide how much material is required. Always plan for a little extra material to ensure you have enough reserves for adjustments.
