3. LC8i

LC8i

LC8i

Technical Highlights

  • Eight input and output channels, 400W max signal per channel.
  • Input impedance of 20kΩ, output impedance is 150Ω.
  • Total harmonic distortion only 0.01%, frequency response 10Hz-22kHz.
  • More technical details
€369.00
€369.00 €369.00
2% discount with credit card

Your price match offer

ProductLC8i

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT
Estimated delivery: Sep 22–Sep 25.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms
datasheet
Audiocontrol-LC8i-High-Low Adapter-masori-kaufen
€369.00
€369.00 €369.00

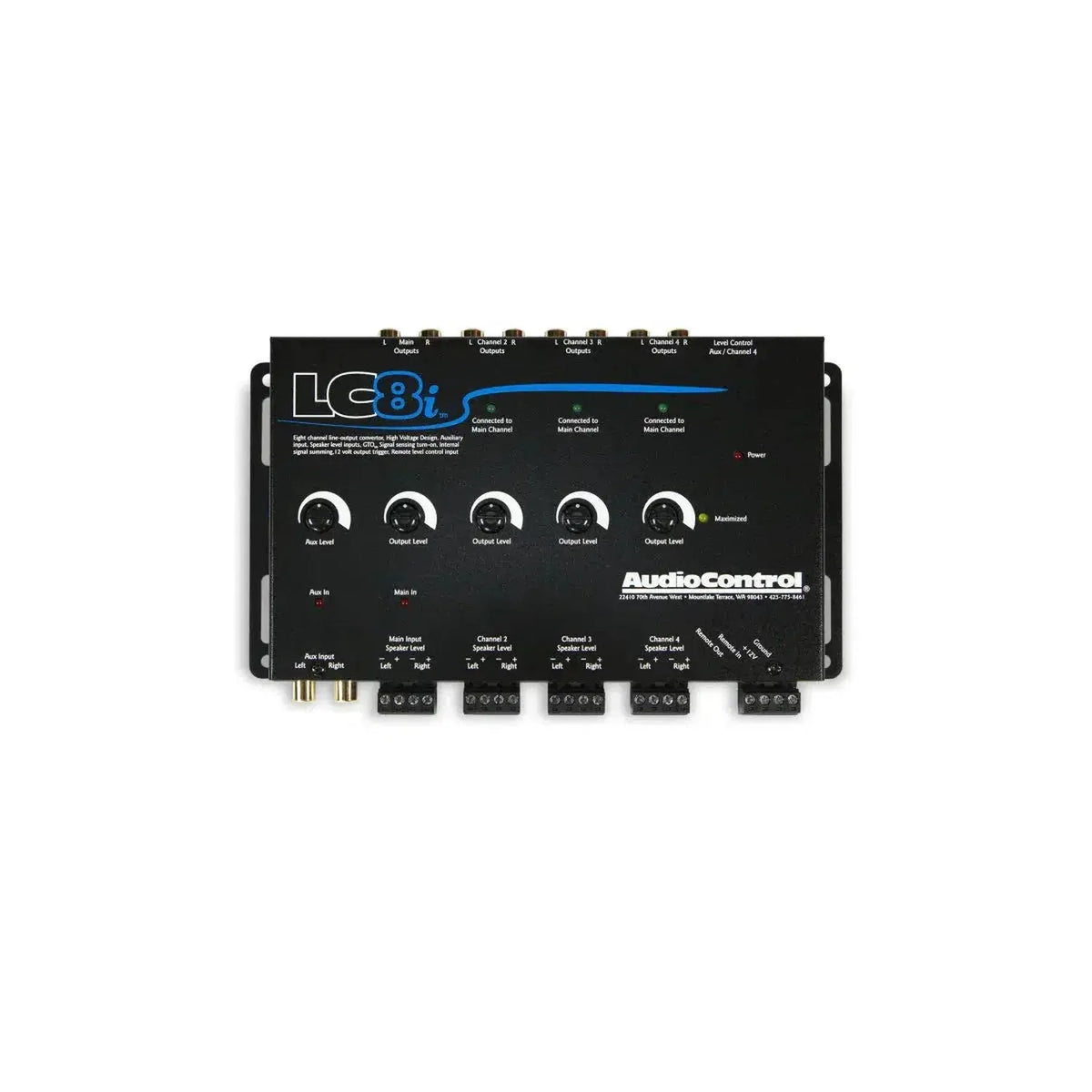

Discover the Audiocontrol LC8i, an 8-channel high-low adapter designed for optimal flexibility and excellent sound quality. With its active input circuitry, it can process speaker level signals of up to 400 watts per channel and convert them into high-quality preamp signals that can be sent to aftermarket processors or amplifiers. Additionally, the LC8i offers the advantage of an Aux input, allowing the connection of secondary sources such as iPods and satellite radio tuners. With the easy switching option between main inputs and the Aux input, you experience maximum control and flexibility for your sound.

features
  • Eight input and output channels - for 400-watt signals per channel
  • Auxiliary input for easy connection of iPods or other portable audio devices
  • Multifunction control panel (included in delivery) for source selection, auxiliary input volume, and subwoofer level control.
  • Internal channel summation
  • Selectable GTO™ Signal Recognition Enable Circuit
SPECIFICATIONS
ENTRANCES
  • Speaker level inputs: 4 (8 channels)
  • Maximum input (speaker level): 400W per channel at 4Ω
  • Preamp inputs (Aux): 1 (2 channels)
  • Input impedance: 20kΩ
EXITS
  • Preamp outputs: 4 (8 channels)
  • Maximum output level: 8.5Vrms
  • Output gain: ±12dB
  • Output impedance: 150Ω
performance capability
  • Total Harmonic Distortion: 0.01%
  • Frequency response: 10Hz-22kHz
  • CONTROL
  • remote control input
  • 12VDC Remote Out (always active when the device is turned on)
GENERAL
  • Power Supply: High Headroom PWM Circuit
  • Current consumption: 350mA
  • Recommended protection: 2A
WEIGHT AND DIMENSIONS
  • Dimensions: 21.8 x 12 x 3.1cm
  • Weight: 1.4kg

datasheet

Open data sheet

Frequently Asked Questions about LC8i

What type of inputs does the Audiocontrol LC8i support?

The Audiocontrol LC8i is equipped with speaker-level inputs and an Aux input. It has a total of four speaker-level inputs that provide eight input channels and can handle up to 400 watts per channel. The Aux input offers two additional channels and supports the connection of external audio sources such as iPods or satellite radios. With an input impedance of 20 kΩ, the LC8i ensures high compatibility and flexible usage options. The active input circuit ensures that the original quality of the audio signals is maintained.

What is the maximum output level of the Audiocontrol LC8i?

The Audiocontrol LC8i offers an impressive maximum output level of 8.5 Vrms. The preamp outputs are distributed across four outputs, each supporting eight channels. With an output impedance of 150 Ω and a variable output gain of ±12 dB, the LC8i delivers low-distortion signals with only 0.01% total harmonic distortion. These specifications ensure excellent sound quality. Especially if you enjoy listening to music loudly, you can rely on top-notch audio performance designed for demanding applications.

What are the dimensions of the Audiocontrol LC8i and how do they affect installation?

The dimensions of the Audiocontrol LC8i are 21.8 x 12 x 3.1 cm. These compact measurements allow for easy integration into various vehicle configurations. Its flexible shape allows placement in areas with limited space without compromising the signal processing components. Weighing 1.4 kg, the device can be mounted securely. The exact installation positions may vary, but the LC8i is designed to be mounted in both vehicles with ample space and those with restricted space.

How does the GTO™ signal detection work in the Audiocontrol LC8i?

The GTO™ signal detection of the Audiocontrol LC8i serves as an intelligent turn-on circuit that automatically activates the device as soon as an audio signal is detected from the input channels. This eliminates the need for a separate remote signal cable by allowing the LC8i to respond directly to audio signals. The process is supported by the built-in high headroom PWM circuit, which improves the response time of the LC8i and reduces the current draw to just 350 mA. The GTO™ functionality is a technical highlight for users who prefer seamless integration.

What power supply does the Audiocontrol LC8i require?

The Audiocontrol LC8i uses a high headroom PWM circuit for power supply, ensuring stable and efficient performance. The current draw is a moderate 350 mA with a recommended fuse of 2A. These specifications ensure reliable operation without overloading the vehicle's electrical systems. The PWM circuit is essential for efficient energy consumption and ensures that the device operates stably even under high power loads. If you value energy efficiency, the LC8i offers a suitable solution.

What frequencies does the Audiocontrol LC8i cover?

The Audiocontrol LC8i has a frequency response of 10Hz to 22kHz. This bandwidth allows it to process a variety of audio signals clearly, from deep bass to high-frequency tones. The frequency range makes the LC8i the ideal device for listening to music with diverse dynamic content. Along with a low total harmonic distortion of just 0.01%, the frequency coverage ensures that all sound details are transmitted in high quality. These are critical parameters for ensuring optimal sound quality.

What control options does the Audiocontrol LC8i offer?

The Audiocontrol LC8i offers various control options accessible through the included multifunction control panel. These include source selection, volume control for the auxiliary input, and subwoofer level control. An external remote input allows for expanded operation. The control is also helpful when integrating into more complex audio setups, giving you central control over the audio connections. The 12VDC remote output function automatically activates connected devices as long as the LC8i is powered on.

How many outputs does the Audiocontrol LC8i support?

The Audiocontrol LC8i supports four preamp outputs, distributed across a total of eight channels. Each output channel can operate at a maximum level of 8.5 Vrms. This configuration gives you the freedom to route audio signals to multiple amplifiers or processors without compromising sound quality. The output impedance is also 150 Ω, allowing for clean and low-loss signal transmission. An integrated channel summation ensures that even complex audio routings can be implemented easily.

What advantages does the auxiliary input of the Audiocontrol LC8i offer?

The auxiliary input of the Audiocontrol LC8i allows for the connection of external audio sources such as iPods or satellite radios, enhancing sound diversity. User convenience is optimized by the easy switching between main and auxiliary inputs. With high flexibility, this allows the user to seamlessly integrate secondary audio sources into the existing car audio system. The integration is supported by an input impedance of 20kΩ, which enables improved signal pickup. This makes the LC8i ideal for users who frequently use mobile devices.

How does total harmonic distortion affect the sound quality of the Audiocontrol LC8i?

The total harmonic distortion (THD) of the Audiocontrol LC8i is only 0.01%, allowing for particularly clean sound reproduction. Such a low THD value is crucial for ensuring uncolored audio sound, as distortions within this threshold are nearly inaudible to the human ear. This allows even the finest details in the music piece to be reproduced clearly and distinctly. If you value high-resolution sound quality, the low THD value ensures that even demanding audio enthusiasts get their money's worth.
