3. CARBON Bass-Set 10

CARBON Bass-Set 10

CARBON Bass-Set 10

Technical Highlights

  • 3-way system, impedance 4 ohms, max. 2x 180 watts power.
  • Subwoofer 4 ohms, 350 watts max, bass reflex housing 28 liters.
  • Amplifier HP/LP filter, RCA connectors, 4x 50 WRMS at 4 Ohm.
  • More technical details
€299.00
€299.00 €299.00
2% discount with credit card

Your price match offer

ProductCARBON Bass-Set 10

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT
Estimated delivery: Sep 21–Sep 24.
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms
Audio System-CARBON Bass-Set 10-Subwoofer-Komplettset-masori-kaufen
€299.00
€299.00 €299.00

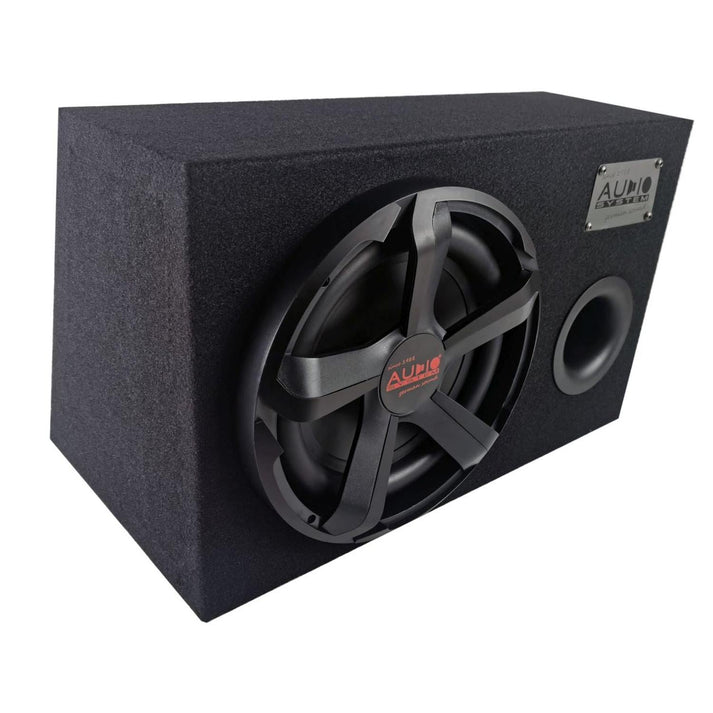

The CARBON Bass Set 10 from Audio System is a Subwoofer Complete Set from the CARBON series. It consists of the CARBON 10 BR Subwoofer in a 28-liter bass reflex enclosure and the 4-channel Amplifier CARBON-200.4. The Subwoofer has an impedance of 4 Ohms and a maximum load capacity of 350 Watts. The Amplifier is equipped with variable, switchable high-pass and low-pass filters as well as RCA high-level inputs with an automatic power-on function. The dimensions of the Subwoofer enclosure are 500 mm in length, 310 mm in height, and 170 mm or 283 mm in depth. The set also includes the components PCS6 and Z-EVO 5.ECO.

Features
  • Subwoofer Complete Set
  • Components: CARBON 10 BR Subwoofer, CARBON-200.4 Amplifier, PCS6, Z-EVO 5.ECO
  • Enclosure: 28-liter bass reflex enclosure
  • Impedance: 4 Ohms
  • Amplifier with variable HP and LP filters
  • RCA high-level input with automatic power-on
  • Cinch output available
Technical Data
  • Maximum power Subwoofer: 350 Watts
  • Nominal power Subwoofer: 250 Watts RMS
  • Power Amplifier: 4x 50 Watts RMS at 4 Ohms
  • Power Amplifier: 4x 80 Watts RMS at 2 Ohms
  • Power Amplifier: 2x 160 Watts RMS Mono at 4 Ohms
  • Enclosure dimensions: 500 x 310 x 170 / 283 mm
  • Amplifier dimensions: 303 x 58 x 220 mm
  • Input sensitivity: 0.2 - 8 Volts

Frequently Asked Questions about CARBON Bass-Set 10

What components are included in the CARBON Bass Set 10?

The CARBON Bass Set 10 from Audio System includes the CARBON 10 BR Subwoofer with a bass reflex enclosure and the 4-channel Amplifier CARBON-200.4. The Subwoofer has an impedance of 4 Ohms, delivers a maximum power of 350 Watts, and is housed in a 28-liter bass reflex enclosure. The Amplifier supports variations of HP and LP filters and has RCA inputs for flexible connection options. With dimensions of 500 mm in length, 310 mm in height, and a depth of 170 mm (front) and 283 mm (back), the set is ideal for high-quality audio installations in vehicles.

What power does the CARBON Bass Set 10 provide?

The CARBON Bass Set 10 delivers a maximum power of 350 Watts and an RMS power of 250 Watts through its Subwoofer. The accompanying 4-channel Amplifier CARBON-200.4 can produce an output of 4x 50 WRMS at 4 Ohms or 2x 160 WRMS in bridge mode at 4 Ohms with an impedance of 4 Ohms. With these power specifications, you can expect impressive volume and sound quality that will satisfy even the most demanding audio enthusiasts. Especially if you enjoy listening to music loudly, this system offers excellent performance.

How do I install the CARBON Bass Set 10 in my car?

Installing the CARBON Bass Set 10 requires consideration of the enclosure dimensions: The Subwoofer has a length of 500 mm, a height of 310 mm, and a depth of 170 mm at the front and 283 mm at the back. The Amplifier must also be considered with its dimensions of 303 x 58 x 220 mm. Ensure that there is enough space in the vehicle for proper placement. It is advisable to position the Amplifier near the Subwoofer to minimize cable runs. The connection is made via RCA connections and appropriate speaker/power cables.

What features does the CARBON-200.4 Amplifier have?

The CARBON-200.4 Amplifier offers variable, switchable HP (High Pass) and LP (Low Pass) filters as well as a flexibly adjustable input and output sensitivity. This can be set between 0.2 and 8 volts, allowing for adaptation to various audio sources. Additionally, the amplifier supports RCA high-level inputs with automatic power on, providing convenience during use. With dimensions of 303 x 58 x 220 mm, the amplifier is compact enough to be easily installed in many vehicles without taking up much space.

What advantages does the bass reflex enclosure of the CARBON 10 BR offer?

The 28-liter bass reflex enclosure of the CARBON 10 BR ensures improved access to low frequencies, resulting in richer bass reproduction. This design maximizes airflow and generates optimal resonance, expanding the sound spectrum of the Subwoofer. The background is the bass reflex port, which increases the acoustic pressure and efficiency of the Subwoofer. If you want to fully exploit the potential of your Audio System, the CARBON Bass Set 10 with its thoughtful enclosure concept could be the right choice for your vehicle.

What distinguishes the Bass Remote Control RTC PC from Audio System?

The Bass Remote Control RTC PC from Audio System for the CARBON Bass Set 10 allows precise adjustments of the bass level of your audio system. With its compact dimensions of 40x40x25 mm, it can be discreetly integrated into the car. Particularly advantageous is its compatibility with many products from the SERIES range of Audio System, except for certain models like Co-35.4 and X-100.4 MD. The wired remote control offers reliability and control, so you can always give the dominant bass presence in your tracks the final touch.

How does the HP and LP filter of the CARBON-200.4 optimize the audio signal?

The HP and LP filters of the CARBON-200.4 Amplifier allow for targeted separation and frequency control within your audio system. The High Pass Filter eliminates low-frequency disturbances, while the Low Pass Filter holds back higher frequencies. This enables the production of clearly defined bass and optimally tuned highs. These comprehensive control options provide you with the flexibility to adapt the sound to different music genres and room conditions, creating the best possible audio experience in your vehicle.

How do I correctly measure the input sensitivity of the Amplifier?

The correct measurement of the input sensitivity of the CARBON-200.4 Amplifier is done by adjusting to a value between 0.2 to 8 volts. Start by turning off all tone settings and setting the volume control of your playback device to normal level. Then adjust the amplifier level until the sound quality is optimal, without exceeding the limits of harmonic distortion. The goal is to minimize distortion while ensuring maximum loudness. Accurate measurement ensures a clean audio signal even at higher volumes.

How is the CARBON 10 BR placed in my car?

When placing the CARBON 10 BR Subwoofer in your vehicle, the dimensions of the enclosure of 500 mm length, 310 mm height, and front and rear depths of 170 mm and 283 mm respectively must be considered. An ideal location in the vehicle is usually the trunk, where the Subwoofer can be securely installed with enough space for the bass reflex opening. To enhance resonance, the bass reflex enclosure is designed to allow optimal circulation of sound waves in the vehicle, creating powerful and clear bass sound.

Is the CARBON Bass Set 10 compatible with all vehicle models?

The compatibility of the CARBON Bass Set 10 depends not only on the connection options but also on the spatial conditions in the vehicle. The enclosure dimensions affect the installation options: installation depth, cable routing, and available connections between the Amplifier and Subwoofer must be taken into account. If there is sufficient space for the dimensions of the bass reflex enclosure, installation can occur without major modifications. In some vehicle models, however, adjustments may still be necessary for optimal use to maximize space and sound quality.
