3. Speaker Set Bundle from €500
  5. HX 165 Phase Aktiv Evo 3

HX 165 Phase Aktiv Evo 3

150 Watt

HX 165 Phase Aktiv Evo 3

Technical Highlights

  • Impedance of 3 ohms, power 240/150W, neodymium drive, speaker.
  • 165 mm cast basket, air circulation, NAWI paper membrane, Nomex spider.
  • 30 mm fabric neodymium tweeter, aluminum flange, coupled volume.
  • More technical details
€549.00
€549.00 €549.00
2% discount with credit card

Your price match offer

ProductHX 165 Phase Aktiv Evo 3

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT
Estimated delivery: Sep 21–Sep 24.
x set
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms
datasheet
Audio System-HX 165 Phase Aktiv Evo 3-6.5" (16,5cm) Lautsprecherset-masori-kaufen
€549.00
€549.00 €549.00

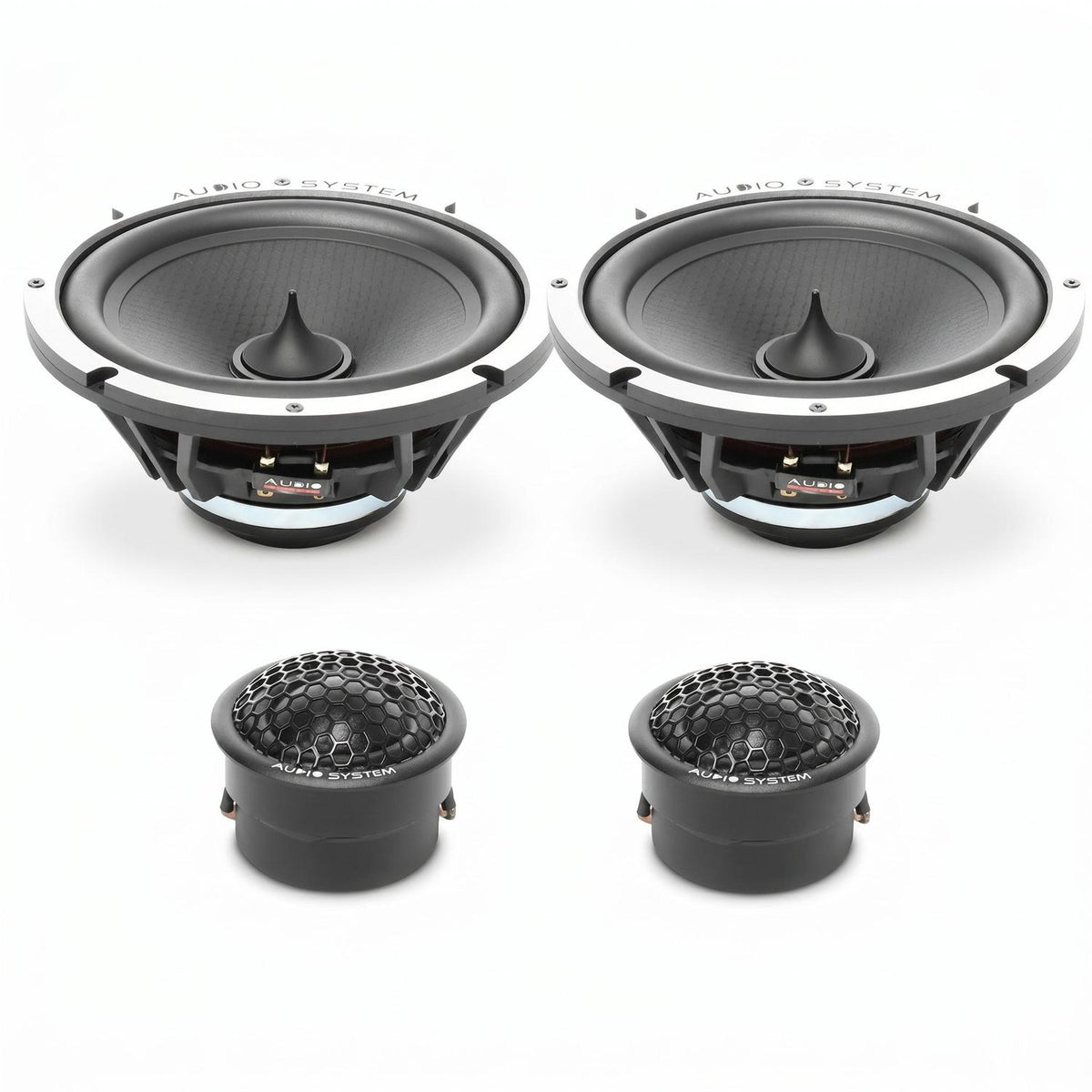

The HX 165 Phase Aktiv Evo 3 is a 6.5-inch Speaker Set from Audio System. The midrange drivers feature a neodymium drive and a ventilated cast basket with a diameter of 165 mm. The diaphragm is made of an ultra-light NAWI paper membrane with fiberglass, Nomex spider, and a phase plug. The set also includes the HS 30 Phase Evo tweeter, which is designed as a 30 mm fabric neodymium tweeter with aluminum flange and protective grille. The impedance of the midrange drivers is 3 Ohms, while the tweeters have an impedance of 4 Ohms. The power ratings are specified as 240/150 Watts.

Features
  • 6.5-inch (16.5 cm) Speaker Set
  • Power: 240 Watts
  • Power: 150 Watts
  • Midrange drivers with neodymium drive and ventilated cast basket
  • NAWI paper membrane with fiberglass, Nomex spider, and phase plug
  • 30 mm fabric neodymium tweeter with aluminum flange and coupling volume
  • Delivery includes: 2x EX 165 Phase EVO 3, 2x HS 30 Phase EVO
  • Protective grille for tweeter included
Technical Specifications
  • Impedance midrange driver: 3 Ohms
  • Impedance tweeter: 4 Ohms
  • Outer diameter midrange driver: 166 mm
  • Installation depth midrange driver: 67 mm
  • Installation measurement midrange driver: 146 mm
  • Outer diameter tweeter: 60 mm
  • Installation depth tweeter: 27 mm
  • Installation measurement tweeter: 54 mm
  • Resonance frequency (Fs) tweeter: 690 Hz

Frequently Asked Questions about HX 165 Phase Aktiv Evo 3

What is the impedance of the HX 165 Phase Aktiv Evo 3 Speaker Set?

The HX 165 Phase Aktiv Evo 3 Speaker Set from Audio System has an impedance of 3 Ohms. This lower impedance reduces resistance in the electrical circuit, allowing for more efficient power transfer. Especially when combined with powerful amplifiers, it enhances sound quality and volume. The impedance significantly affects overall performance, ensuring that the Speaker Set can optimally deliver its 240/150 Watts. This feature is crucial for users who value powerful, clean audio playback. The impedance is designed to work well in a variety of modern audio setups.

What characterizes the midrange driver of the HX 165 Phase Aktiv Evo 3?

The midrange driver of the HX 165 Phase Aktiv Evo 3 features a powerful neodymium drive, which provides impressive performance in a compact design. Neodymium is known for its strong magnetic force at a small size, significantly enhancing the performance and efficiency of the midrange driver. The speaker itself uses an ultra-light NAWI paper diaphragm reinforced with fiberglass. This construction ensures stable and precise sound reproduction. The interaction with the Nomex spider and the phase plug promotes even sound distribution and deep reproduction, ideal for clean and powerful midrange.

What materials are used in the membranes of the HX 165 Phase Aktiv Evo 3?

The membranes of the HX 165 Phase Aktiv Evo 3 Speaker Set consist of a NAWI paper diaphragm reinforced with fiberglass. This material combination offers an excellent balance between weight and stability. The lightweight structure of the NAWI paper diaphragm allows for quick vibrational movements, achieving accurate sound reproduction. Additionally, the fiberglass reinforcement provides increased strength, minimizing distortion and enhancing the durability of the diaphragm. The combination of these materials is aimed at listeners who expect precise and clear sound representation across a wide frequency range.

How is the tweeter in the HX 165 Phase Aktiv Evo 3 designed?

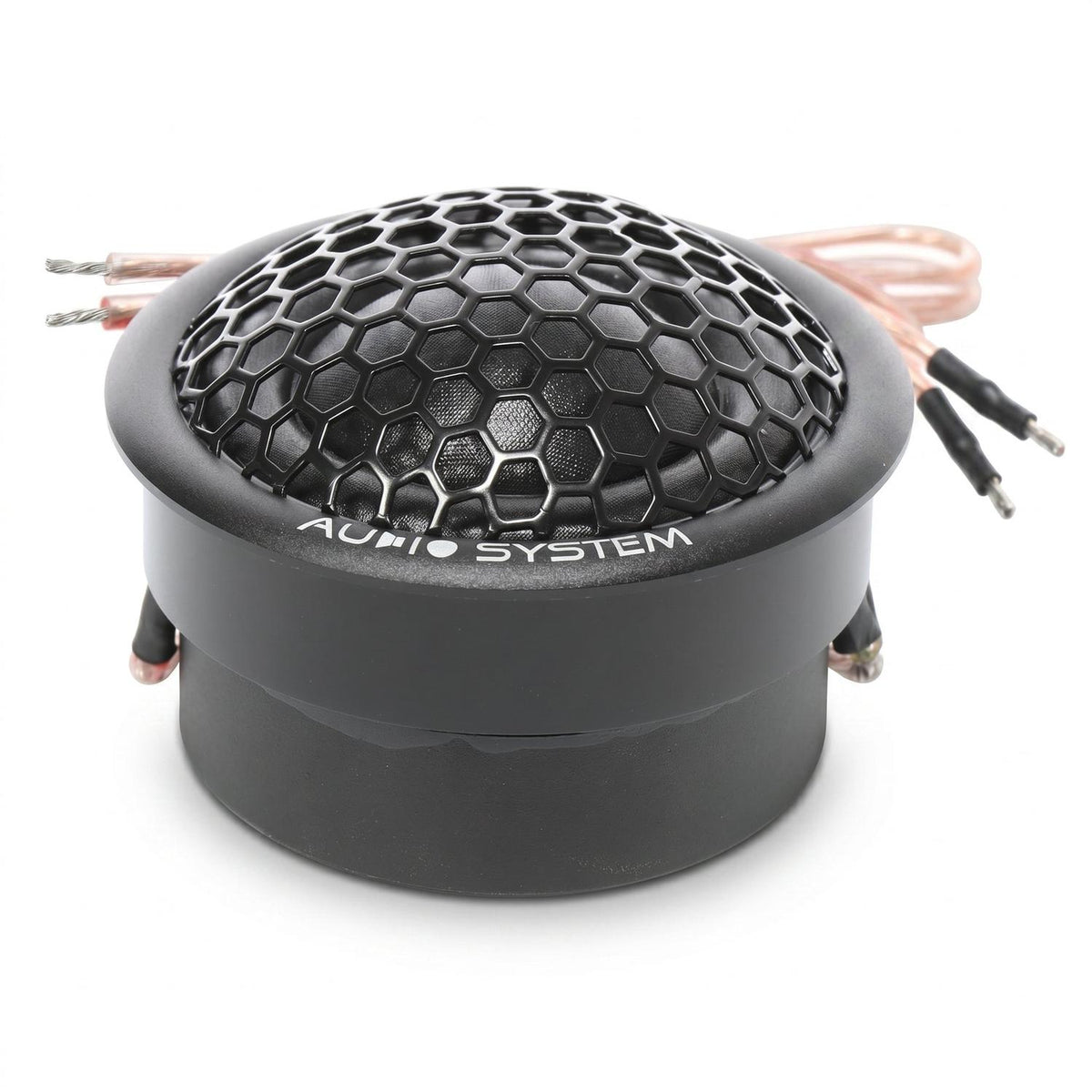

The Speaker Set HX 165 Phase Aktiv Evo 3 includes the HS 30 Phase Evo Tweeter, characterized by a 30 mm fabric neodymium tweeter with an aluminum flange. This tweeter offers high efficiency and a compact design thanks to the use of neodymium. A coupled volume and a protective grille further support the tweeter with optimized frequency response and protection. With an impedance of 4 Ohms and a resonance frequency of 690 Hz, this tweeter is ideally matched to the set to clearly and detailed reproduce even the most demanding audio structures, even at higher volume levels.

What power can the speakers of the HX 165 Phase Aktiv Evo 3 achieve?

The Speaker Set HX 165 Phase Aktiv Evo 3 from Audio System offers an impressive power of 240 Watts at maximum output and 150 Watts RMS power. This power ensures that the speakers deliver clear and distortion-free sound even at high volumes. The combination of the powerful neodymium drive and efficient diaphragm materials allows for the reproduction of the full range of tones with high fidelity. Especially if you enjoy listening to music loudly or playing demanding music productions, this speaker set provides the necessary dynamics and power to reproduce every detail of the audio source.

What are the dimensions of the HX 165 Phase Aktiv Evo 3 Speaker Set and how does that affect installation?

The speakers of the HX 165 Phase Aktiv Evo 3 set have an outer diameter of 166 mm and a mounting depth of 67 mm, while the installation measurement is 146 mm. These dimensions are crucial for installation compatibility in vehicles, as they ensure that the speakers can be securely fixed in the designated cutout spaces. Especially in older or unusually designed vehicles, the installation situation may vary, which is why it is important to match the measurements with the vehicle model. The compactness and thoughtful design allow for flexible mounting to ensure the best possible sound experience.

What frequency range does the HX 165 Phase Aktiv Evo 3 Speaker Set cover?

The HX 165 Phase Aktiv Evo 3 Speaker Set from Audio System is known for its deep audio reproduction, achieved through the combination of tweeter, midrange driver, and high-quality material elements. The tweeter has a resonance frequency of 690 Hz, which particularly affects the clarity of the higher frequencies. While exact frequency specifications are missing in the output data description, the use of special diaphragms and a phase plug provides a wide sound spectrum that effectively covers both the mid and upper frequency ranges, ideal for music lovers who value details.

How is heat dissipation ensured in the HX 165 Phase Aktiv Evo 3 Speaker Set?

Heat dissipation in the HX 165 Phase Aktiv Evo 3 Speaker Set is effectively supported by the ventilated cast basket of the speakers. This special basket serves as a cooling structure that effectively dissipates heat from the voice coil, thus preventing overheating. This is essential, especially under high power consumption or continuous load, to ensure consistent and safe functionality of the speaker. This construction protects sensitive components from thermal stress and ensures long-lasting and reliable performance, which is particularly advantageous during intensive use.

What advantages does the Phase Plug in the HX 165 Phase Aktiv Evo 3 provide?

The Phase Plug in the HX 165 Phase Aktiv Evo 3 Speaker Set improves high-frequency characteristics and helps avoid interference effects and distortions. By consciously directing the sound, it reduces phase issues, especially in the critical midrange. This targeted sound radiation optimizes the radiation behavior of the speaker, leading to a more homogeneous sound field distribution. The result is a significantly more precise soundstage with a clear midrange. The advantage of this technology becomes noticeable, especially in intricate musical passages, as the sound appears more natural and dynamic.

Are the speakers of the HX 165 Phase Aktiv Evo 3 suitable for use in all vehicles?

The HX 165 Phase Aktiv Evo 3 Speaker Set is designed to be widely compatible, and with its specific dimensions (outer diameter: 166 mm, installation depth: 67 mm, installation size: 146 mm), it can be integrated into various vehicle types. However, compatibility should always be checked based on the specific installation locations and measurement specifications of the respective vehicle. While many modern vehicles allow the integration of such speakers through standardized installation sizes, some models may require adjustments. The flexible dimensions enable installation in numerous vehicle categories, allowing for an unaltered sound experience in various mobile audio environments.
