3. Rearview camera accessories
  5. RVSC62-MK2

RVSC62-MK2

RVSC62-MK2

Technical Highlights

  • Power Consumption: 70 mA/100 mA @12VDC, 1.0 Vp-p/75 Ohm Video.
  • Image Sensor: Dual-6.09 mm SONY CMOS, IR-LED Night Illumination.
  • Resolution: 1305x977 pixels, NTSC/30fps, IP69K protection.
  • More technical details
€179.00
€179.00 €179.00
2% discount with credit card

Your price match offer

ProductRVSC62-MK2

Reply within 1–3 working days · Mon–Fri. Outside the EU, we are happy to review an individual offer.

Privacy

This website is protected by hCaptcha. The privacy policy and terms of service of hCaptcha apply.
including VAT
Estimated delivery: Sep 21–Sep 24.
x piece
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL Wero
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Shop Pay
  • Twint
  • Union Pay
  • Visa

Delivery & availability

The selected variant is not currently in stock at Masori and is sourced from the supplier. Refer to the estimated delivery window above.

Orders ship together based on the item with the longest lead time. If you need something sooner, ask by email about a possible partial shipment beforehand.

Shipping costs and options depend on the destination. Check the shipping calculator; final costs are shown before placing the order.

Email us the product, car, existing system and budget. We will offer an alternative available sooner.

Ask for an alternative available sooner

Reply in 1–3 working days · Mon–Fri

1 year extra warranty

Every product purchased from Masori includes an additional year of warranty in the third year after purchase (months 25–36). We cover repair or replacement free of charge for covered warranty claims. Automatic and free – exclusively for Masori customers. Your statutory rights remain unaffected.

Warranty terms
ZenecRVSC150MV
Zenec-RVSC150MV-Kamera Zubehör-masori-kaufen

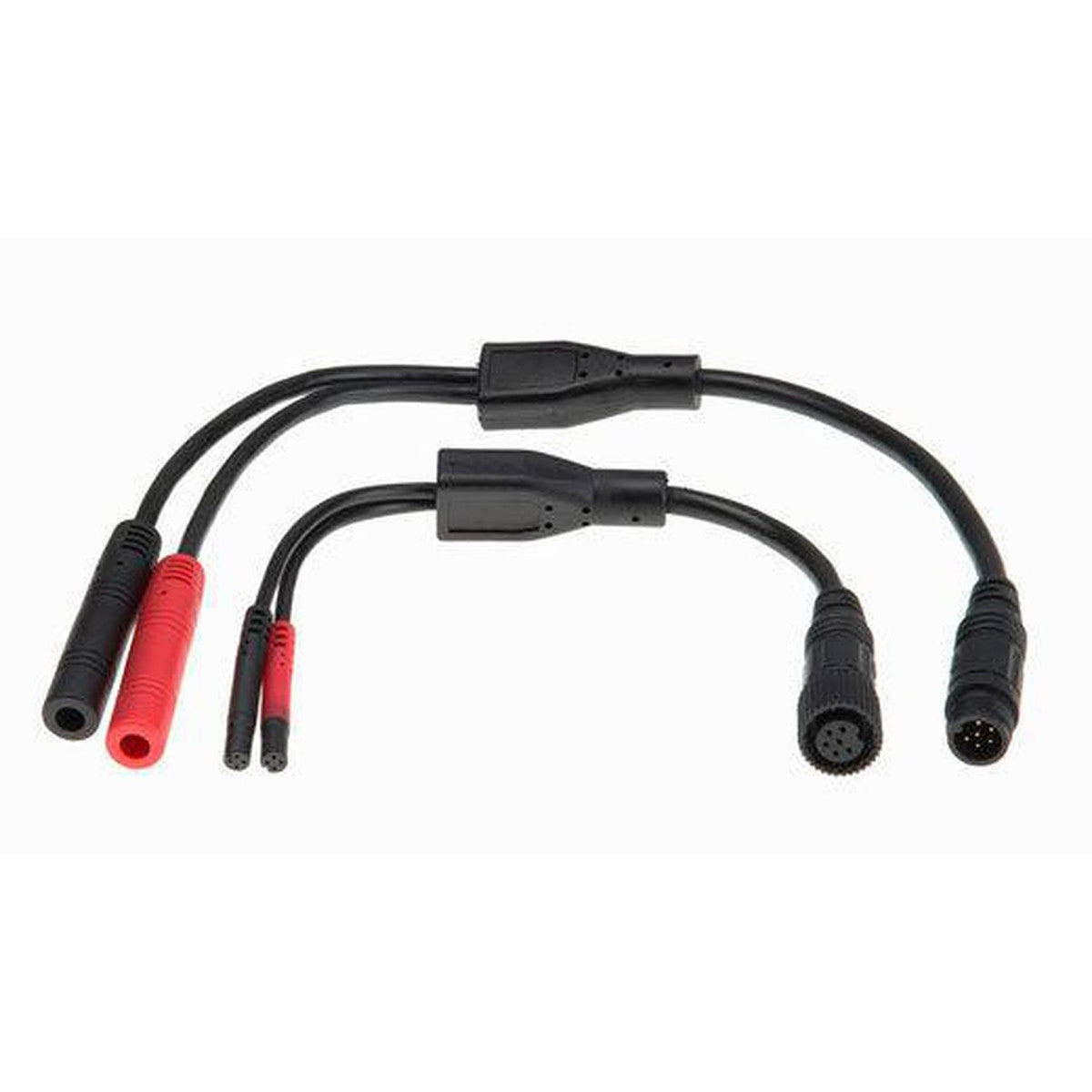

Zenec-EACC-CADIF-Kamera Zubehör-masori-kaufen
ZenecEACC-CADIF
Zenec-RVSC62-MK2-Kamera Zubehör-masori-kaufen
€179.00
€179.00 €179.00

Discover the RVSC62-MK2 from Zenec, a high-quality camera accessory specifically designed for reverse applications. Equipped with two 6.09 mm SONY IMX225LQR CMOS sensors, it offers a crystal-clear image with a native sensor resolution of 1305 x 977 pixels. The camera impresses with its compact design and innovative dual-lens technology with variable viewing angles. With an integrated IR LED night lighting system, a built-in microphone, and robust IP69K protection, the RVSC62-MK2 is well-suited for various environments. Easy and quick to install, the Fast-Mount click fastening significantly simplifies the installation.

Technical Specifications

  • Image sensor Cam1 + Cam2: 6.09 mm SONY IMX225LQR CMOS Sensor
  • Focal length lens Cam1/Cam2: f3.5 / f2.3
  • TV System: NTSC / 30 fps
  • Viewing angle Cam1/Cam2: 90°(D)x50°(H)x45°(V) / 130°(D)x95°(H)x75°(V)
  • Native Sensor Resolution: 1305 (H) x 977 (V) pixels
  • Resolution output signal: > 420 TV lines
  • Frame rate: 30 fields/sec.
  • Signal-to-noise ratio: > 48 dB
  • Light sensitivity: 0.3 Lux
  • Video Output: 1.0 Vp-p, 75 Ohm CVBS
  • White balance: Automatic
  • Exposure Compensation: Automatic
  • Gamma Correction: 0.45
  • Brightness adjustment: Automatic
  • Synchronization: Automatic
  • Power supply: DC 12 V
  • Power consumption: 70 mA / 100 mA @12VDC, ≤ 2040 mW
  • Protection class: IP69K
  • Operating temperature: -30° C ~ +75°C, RH 95 % Max.

Main features

  • Compact and elegantly designed dual lens rearview camera
  • Fast-Mount click fastening of the camera main unit to the mounting plate
  • Cam1 sensor with 50° and Cam2 sensor with 95° horizontal viewing angle
  • The vertical and horizontal image crop of Cam1 and Cam2 can be manually adjusted on the camera housing.
  • IR-LED night illumination system for Cam2 with dynamic LDR brightness control
  • Integrated Microphone (Cam2)
  • 3-part separable system cable with 17.0 m main cable length
  • Adaptation of factory-installed Waeco main cables in the set

Frequently Asked Questions about RVSC62-MK2

What image quality does the Zenec RVSC62-MK2 camera offer?

The Zenec RVSC62-MK2 rearview camera uses two 6.09 mm SONY IMX225LQR CMOS sensors. It delivers a native sensor resolution of 1305 x 977 pixels, ensuring detailed image reproduction. The TV system is NTSC, and the camera operates with a stable frame rate of 30 fields per second. With a signal-to-noise ratio of over 48 dB, it guarantees high image stability even in low light conditions. The combination of these technological parameters allows for sharp and clear image quality, ideal for use as a rearview camera in various lighting conditions.

How do the viewing angles of the lenses in the RVSC62-MK2 differ?

The Zenec RVSC62-MK2 is equipped with innovative dual-lens technology. The two camera lenses offer different viewing angles: Cam1 has a horizontal viewing angle of 50° and a vertical angle of 45°, while Cam2 has an extended horizontal viewing angle of 95° and a vertical angle of 75°. This variability in viewing angles allows for flexible coverage of the surroundings when reversing, with the user able to manually adjust the orientation. The extended viewing angle of Cam2 provides a comprehensive area view.

What operating temperatures can the Zenec RVSC62-MK2 withstand?

The RVSC62-MK2 rearview camera from Zenec is designed for a wide temperature range. It operates effectively in a temperature range of -30°C to +75°C, making it well-suited for use in extreme climatic conditions. Functionality is maintained even at a maximum relative humidity of 95%, making the camera an excellent choice for various environments and weather conditions. These robust operating parameters enable reliable use in different geographical regions and seasonal conditions.

How does the IR-LED night lighting system of the RVSC62-MK2 help in the dark?

The integrated IR-LED night lighting system of the Zenec RVSC62-MK2 is specifically designed for low light conditions. This technology belongs to Cam2 and uses dynamic LDR brightness control to automatically optimize the image in darkness. The IR-LEDs provide uniform illumination without visible light sources, drastically improving night vision. This is particularly useful in unlit parking lots or in situations where the reverse lights are insufficient to adequately illuminate the surroundings.

What are the main features of the Zenec RVSC62-MK2 rearview camera?

The Zenec RVSC62-MK2 impresses with a range of outstanding technical features. The compact dual lenses provide variable viewing angles, while the native sensor resolution of 1305 x 977 pixels ensures sharp images. The integrated microphone allows for audio recording, which is an additional advantage when reversing. The Fast-Mount Click mounting of the camera significantly simplifies installation. Additionally, the camera is optimally protected against dust and water with an IP69K protection class, making it ideal for use in demanding environments.

Can I install the Zenec RVSC62-MK2 in my vehicle?

The Zenec RVSC62-MK2 is universally designed due to its compact construction and easy installation with the Fast-Mount Click system. This allows for straightforward attachment to various vehicle models, regardless of brand or model. The camera dimensions and the required mounting plates for installation should be noted. Since there are no specific requirements for a car brand, this rearview camera can be flexibly integrated into different automobiles. Additionally, the manually adjustable image sections adapt perfectly to various body designs.

What technical dimensions are required for the installation of the Zenec RVSC62-MK2?

For the installation of the Zenec RVSC62-MK2 rearview camera, it is important to consider the compact dimensions of the camera main unit. The camera can be easily mounted on the mounting plate thanks to the Fast-Mount Click system. The entire unit includes mounting hardware that allows for a quick and stable installation. It is particularly important to note the length of the system cable, which at 17.0 meters provides sufficient leeway for flexible cable routing. This ensures that installation is straightforward even for larger vehicles.

What is the automatic exposure compensation of the Zenec RVSC62-MK2 used for?

The Zenec RVSC62-MK2 is equipped with automatic exposure compensation to optimize image quality under varying light conditions. This function adjusts the exposure in real-time to compensate for overexposed or underexposed scenes. For example, it improves the image when you drive from a dark shadow area into full sunlight during the day. This compensation function is crucial for maintaining consistently high image quality in changing lighting scenarios, enabling reliable environment detection when reversing.

What role does automatic synchronization play in the Zenec RVSC62-MK2?

Automatic synchronization in the Zenec RVSC62-MK2 ensures that the video signals are delivered perfectly and without delays to the display system. The synchronization continuously adjusts the image and video output to ensure optimal playback mode. This is particularly helpful when used in dynamic environments where a responsive implementation of image data is required. This guarantees that you can react immediately to any changes in the field of view, significantly improving driving safety when reversing.

What does the IP69K protection class mean for the Zenec RVSC62-MK2?

The IP69K protection class of the Zenec RVSC62-MK2 means that the camera is extremely resistant to the ingress of dust and water. This protection rating ensures that the camera remains durable even when subjected to high-pressure cleaning and strong water jets. It is ideal for vehicles that are frequently operated in dusty environments or during heavy rain. This feature ensures that there are no functional impairments outdoors under various weather conditions, enhancing the longevity and reliability of the camera.
